Engine Signal

Reports > Engine Signal

PREREQUISITE: You must have Engine Diagnostics licensed and configured to utilize this report.

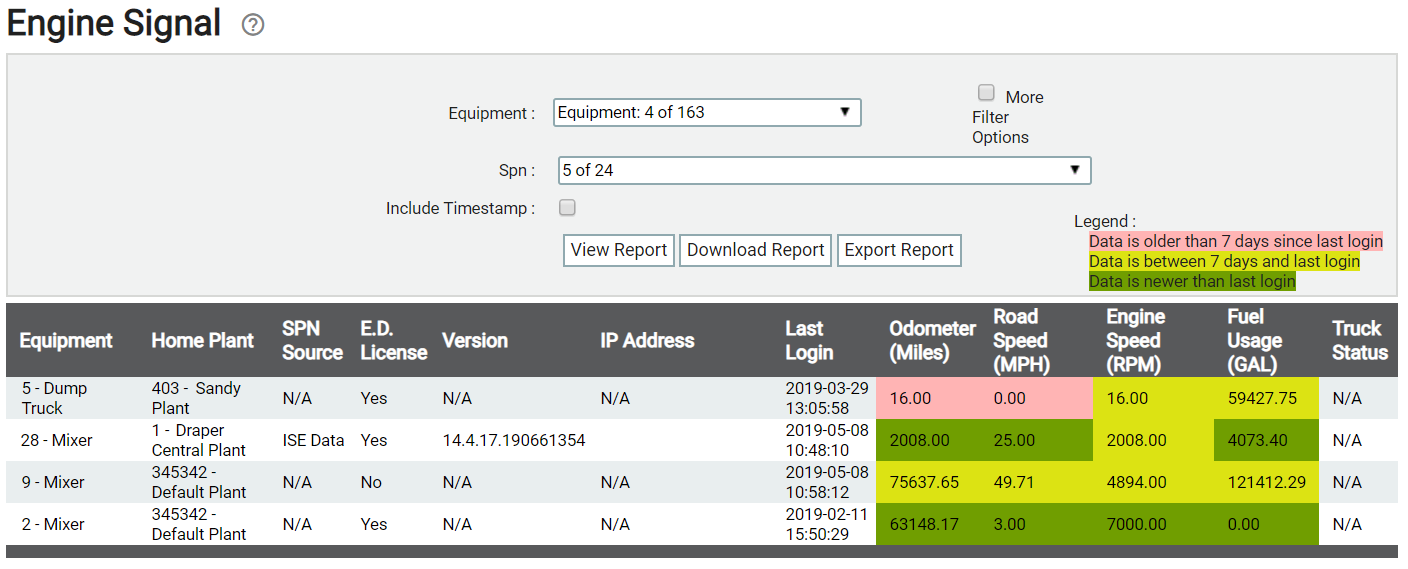

This report pulls the latest engine diagnostic readings on equipmentAll machines used as a means of production on a construction site or at a batch plant. based on TrackIt-configured SPN codes. Selecting the Include Timestamp option gives context regarding how recent certain codes are triggered.

The codes included in this report are used for engine fault diagnostics, driving and idle time, fuel usage tracking, speed and distance checks, and even simple oil temperature monitoring. This data helps verify engine problems while equipment is in the field as well as diagnose these issues before they escalate.

Code Name

AcceleratorAn action or additive that accelerates the strength of concrete at an early age. Pedal Position

Battery Voltage

Brake Pedal Position

Coolant Level

Coolant Temperature

Current Gear

Engine Hours

Engine Speed

Fuel Level 1

Fuel Level 2

Fuel Usage

Idle Fuel Usage

Idle Hours

Ignition IO

Instantaneous Fuel Rate

Odometer

Oil Level

Oil Pressure

PTOHours provided by the employer that employees may use for sick, vacation, and personal days. Hours

Road Speed

Transmission Range Attained

TruckAll machines used as a means of production on a construction site or at a batch plant. StatusThe specific activity or task a driver is currently engaged in, typically as part of a process called a "status loop."
