Hardware & Software Requirements

This installation kit includes a Samsung Galaxy Tab Active2, RAM® Mount, and Gamber-Johnson docking station. The Samsung Galaxy Tab Active2 has been provisioned in-house and is ready for installation when shipped.

Compatibility requirements

The Samsung Galaxy Tab Active2 and dock are shipped with the required hardware and software configurations in place.

For troubleshooting the Samsung Galaxy Tab Active2 setup, refer to the software and hardware requirements for the Engine Data Controller (EDC) hardware and software requirements.

Hardware components

Ensure the following components are included in the installation kit:

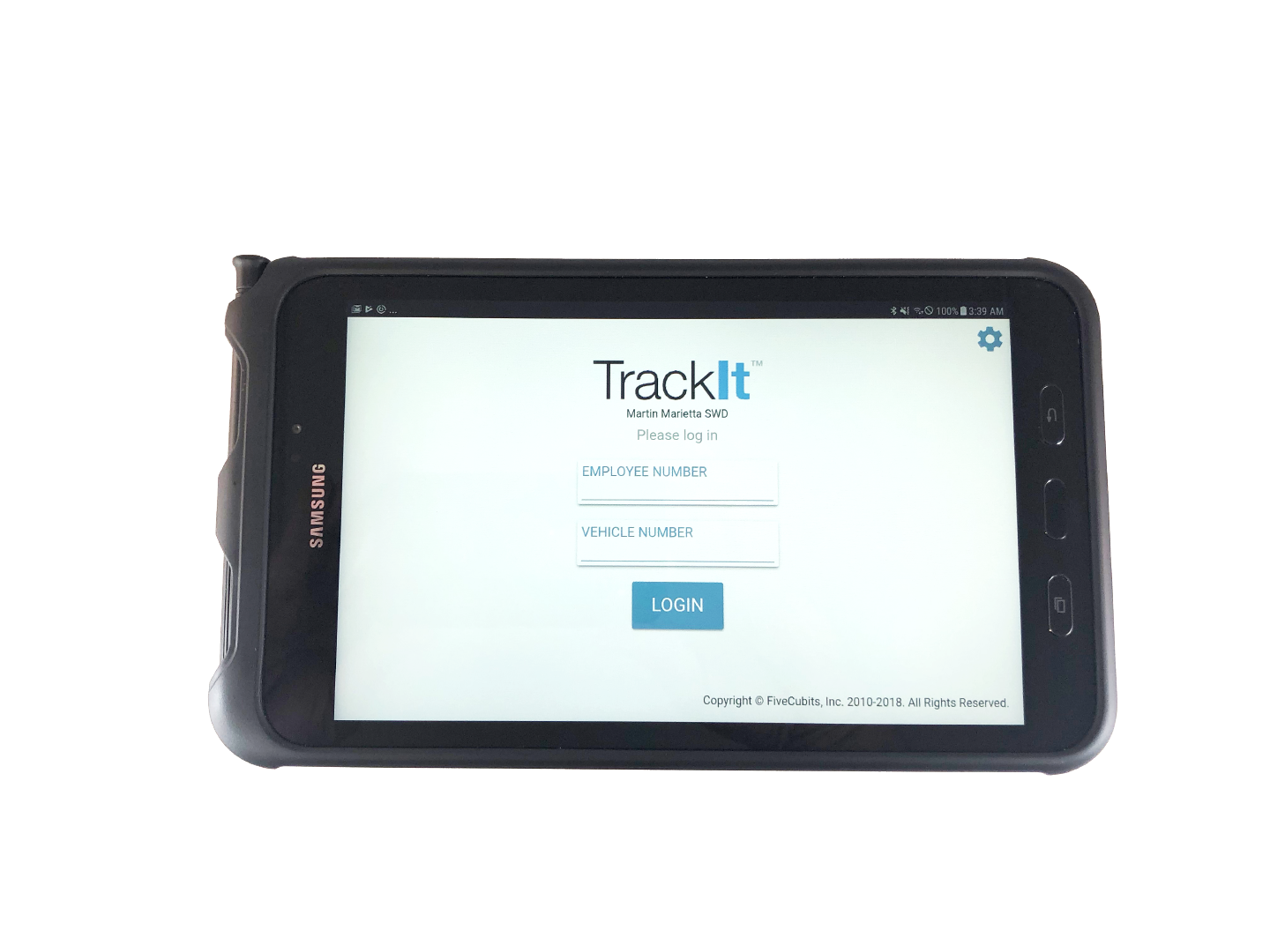

	Component	Samsung Galaxy Tab Active2
	Description	A tablet with skin and stylus. Includes USB-C charging port, Android 6.0.1+, and docking connector.

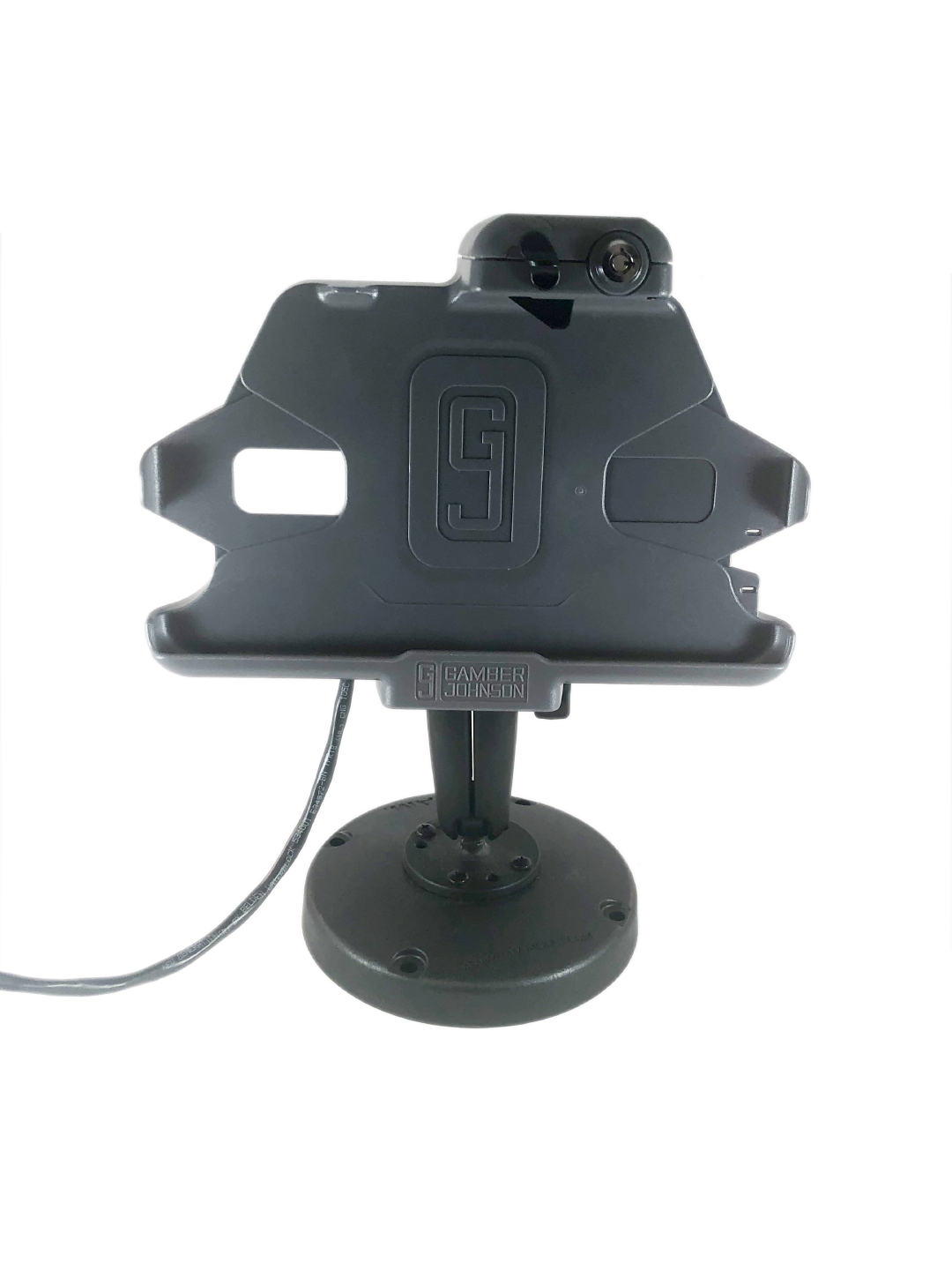

	Component	1 Gamber-Johnson Tab Active2 Full Dock Station
	Description	A rugged dock with a tablet lock and power cable for connection to a vehicleAll machines used as a means of production on a construction site or at a batch plant.'s power supply. Includes a USB 1.1 port, camera access, and docking connector.

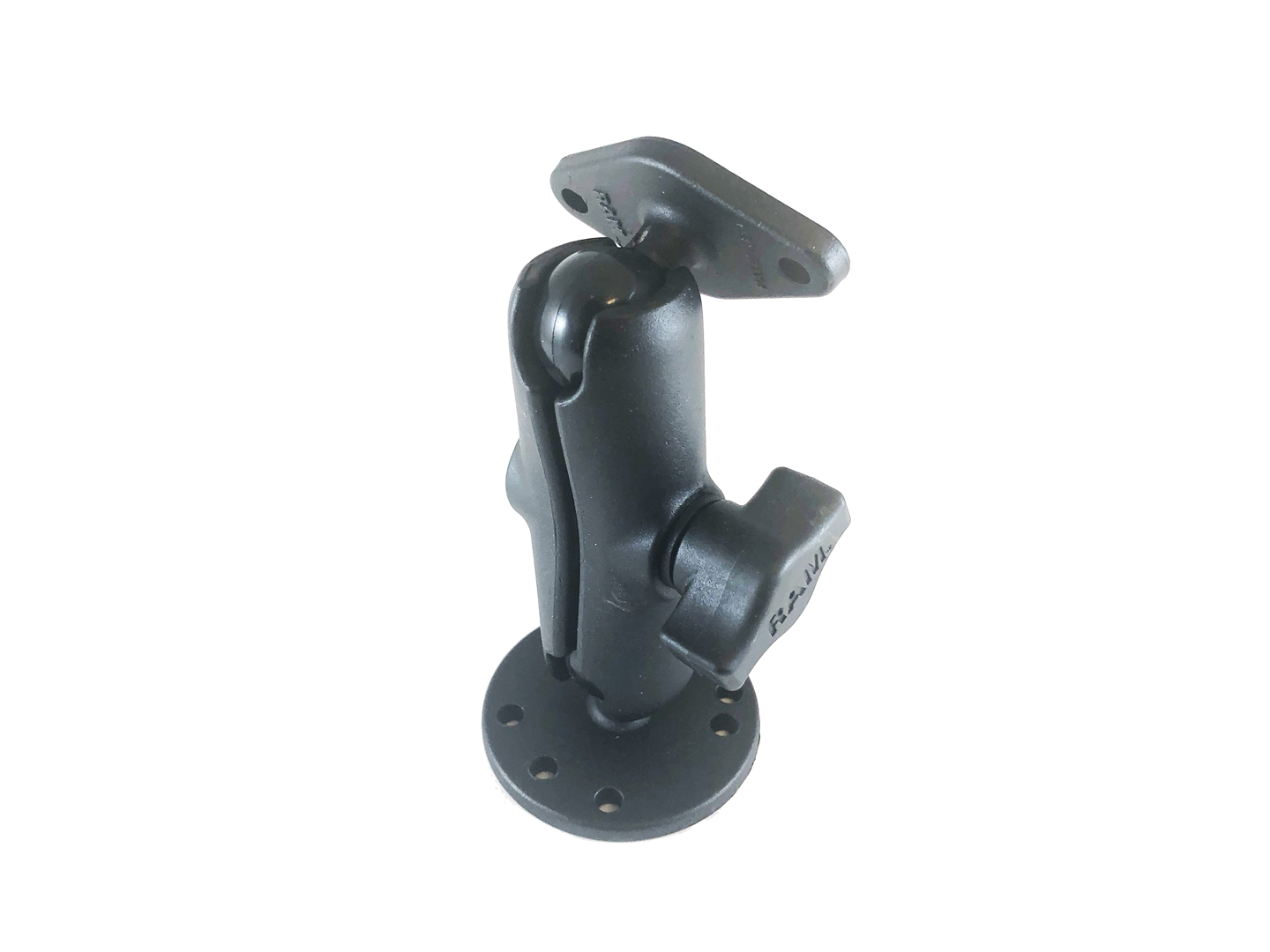

	Component	1 RAM Mount
	Description	Rugged, adjustable mount.

Misc. components

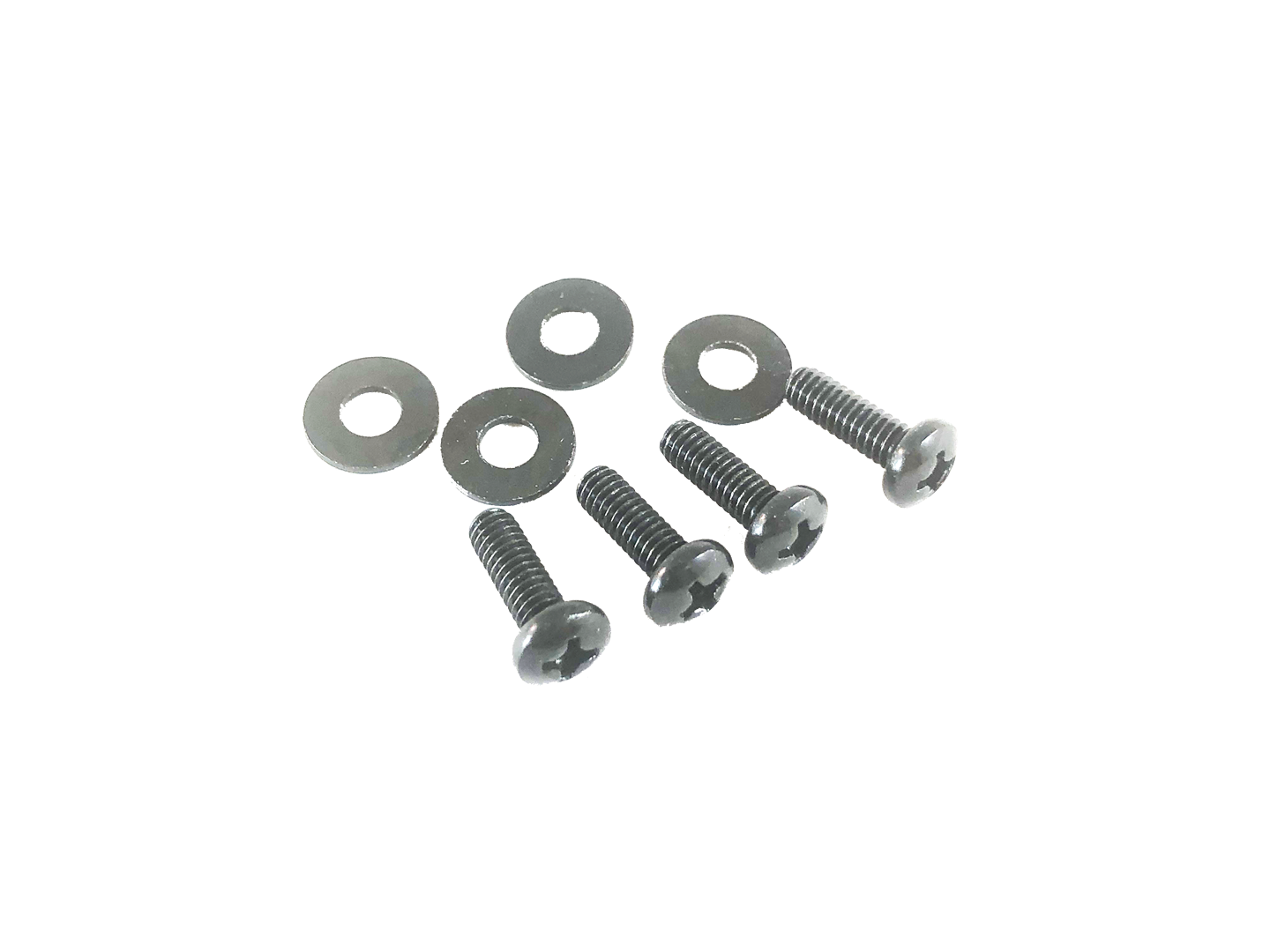

	screws and washers

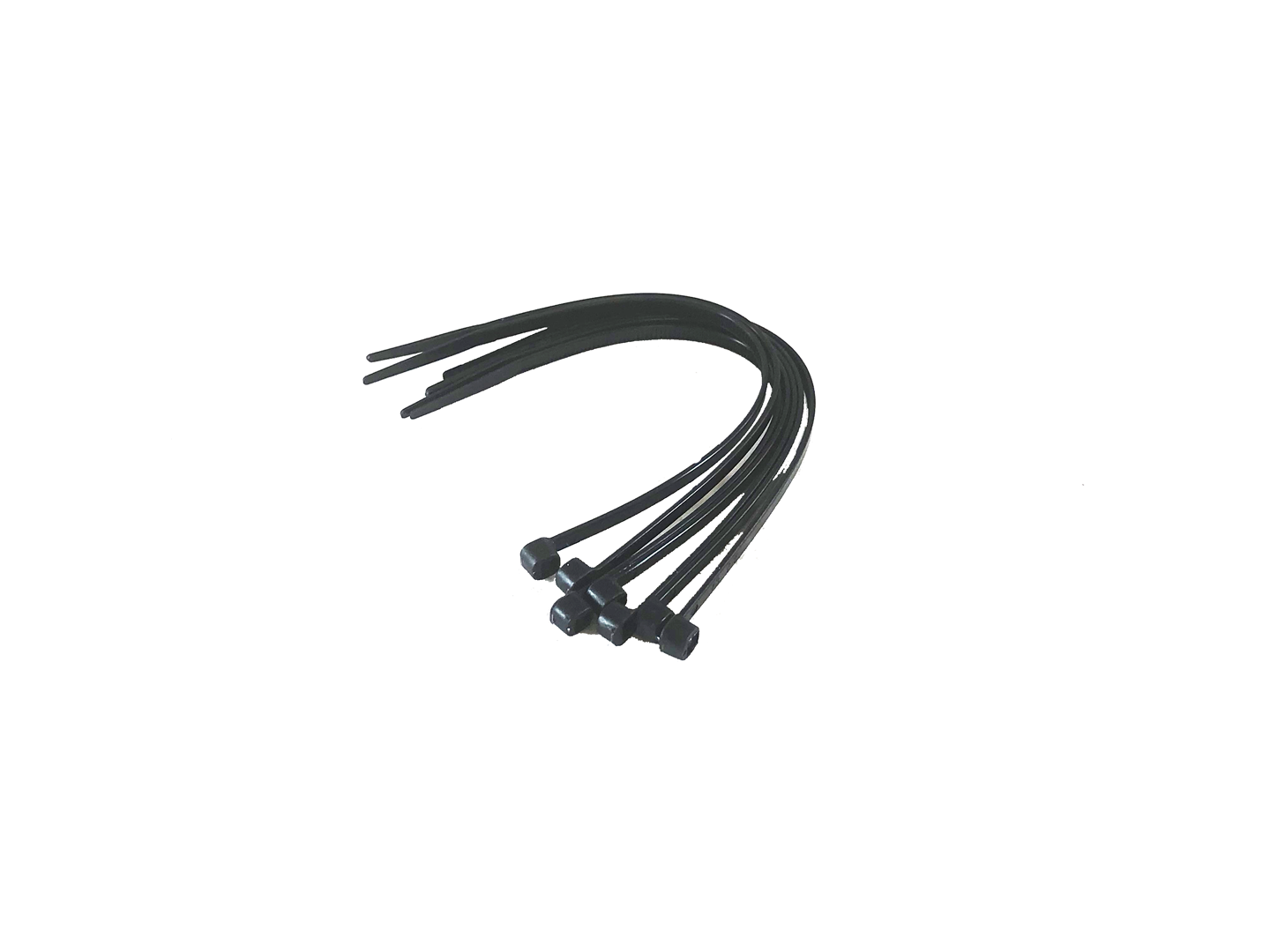

	zip-ties

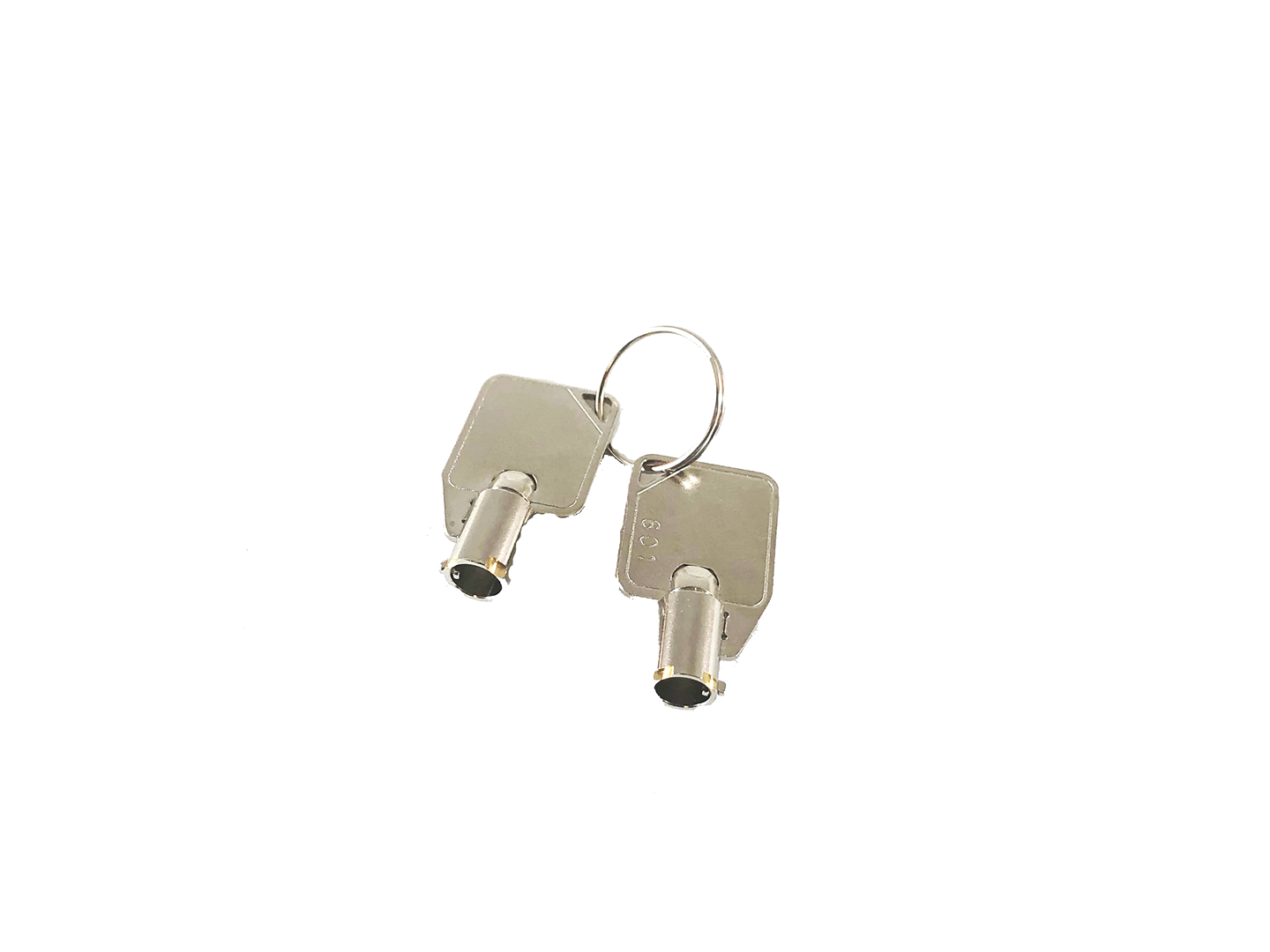

	dock keys

Required tools & equipment

After all components are verified, assemble the following equipmentAll machines used as a means of production on a construction site or at a batch plant. to use in the installation:

• Wire cutters
• Wire stripper
• Wire connectors
• 5A Inline Fuse
• Phillips screwdriver(s) or power screwdriver
• Drill
• Additional screws
