Install the Power/Engine Diagnostic Cable

Before installing the OBCClosedA vehicle data monitoring device that collects diagnostic information sent by the ECU and reports it to TrackIt., you need to secure a connection to the vehicleClosedAll machines used as a means of production on a construction site or at a batch plant.'s power and to the engine diagnosticsClosedTrackable vehicle data reported by the ECU. Such information allows a company to proactively monitor the health of equipment. port. The OBC draws from both to transmit information to TrackItTrackIt.

  1. Remove any existing connection or Deutsch 9-pin power/engine diagnostic cable from the vehicle's Engine Control Unit (ECUClosedAlso known as an engine control module, this device controls engine performance by monitoring data reported by myriad built-in sensors. This data is interpreted by the ECU and then relayed to engine diagnostic hardware, such as an OBC or EDC.).
  2. Identify each connection for the Command Alkon Incorporated power/engine diagnostic cable.
    1. Electrical leads
    2. Blue Molex-type connector (goes to OBCPIGOCTO Molex-type connector)
    3. Deutsch 9-pin male connector (secures to port access)
    4. Deutsh 9-pin female connector (goes to vehicle ECU)

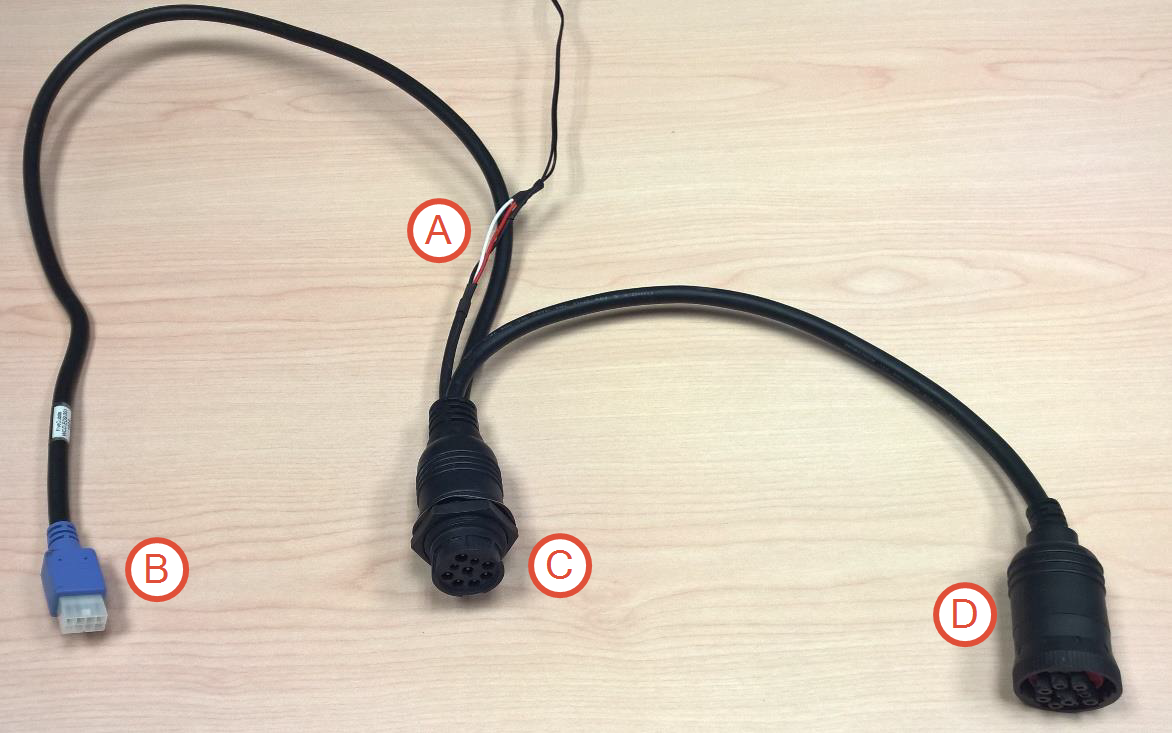

    Blue molex-type, Deutsch 9-pin male, and Deutsch 9-pin female connectors.

  1. Connect the female end of the power/engine diagnostic cable into the ECU plug of the vehicle. This end of the cable will remain continuously connected to the ECU.

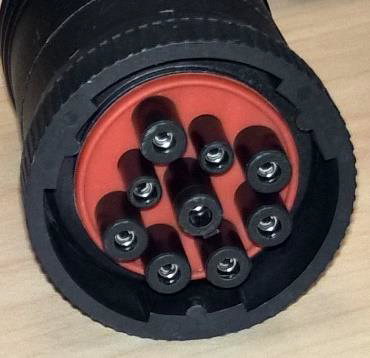

Female Deutsch 9-pin connection

  1. Secure the male end of the cable to a port where it is accessible to connections with diagnostic or trouble-shooting equipmentClosedAll machines used as a means of production on a construction site or at a batch plant..

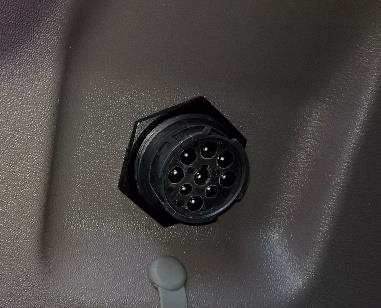

Male Deutsch 9-pin secured to accessible port for diagnostic connections.

  1. Connect the blue Molex-type connector on the power/engine diagnostics cable to the Molex-type connector on the OBCPIGOCTO cable (A).
  2. Connect the red electrical lead to a 4A or 5A fast blow fuse and then to vehicle power.
  3. Connect the white electrical lead to a 4A or 5A fast blow fuse and then to vehicle ignition.
  4. Connect the black electrical lead to vehicle ground.

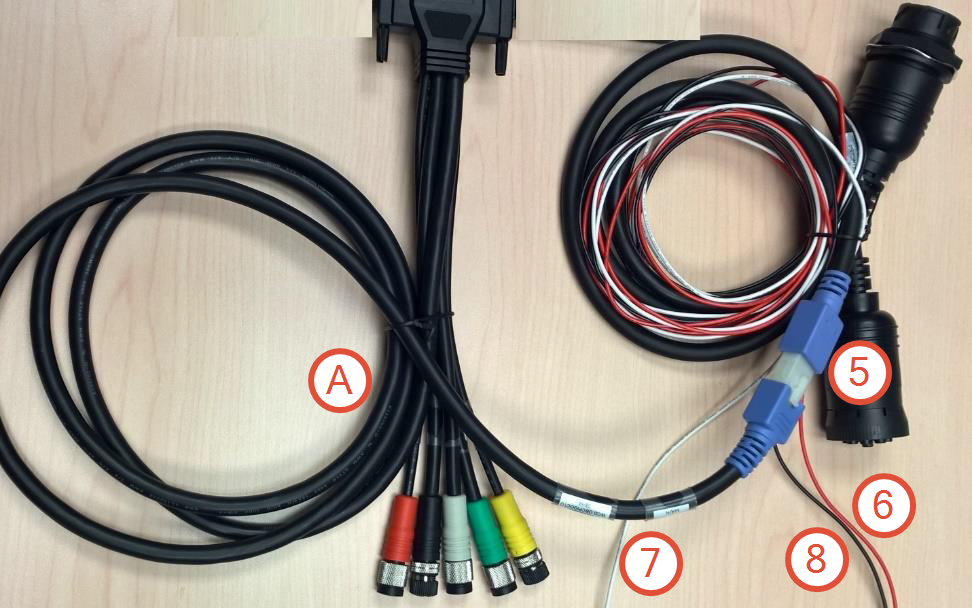

Picture of the connection between the OBCPIGOCTO cable and the power/engine diagnostics cables.

Now that you have connected the diagnostic cable to the ECU and the OBCPIGOCTO and connected these cables to the engine power, you are ready to install the OBC.
