Hardware Requirements

The following components are required for the installation of the OBCA vehicle data monitoring device that collects diagnostic information sent by the ECU and reports it to TrackIt.317 and include options for multiple possible configurations. The makeup of certain vehiclesAll machines used as a means of production on a construction site or at a batch plant. will in part determine the cellular and GPS equipmentAll machines used as a means of production on a construction site or at a batch plant. distributed.

Hardware components for the OBC317

Before beginning the installation, ensure one type of the following components are included with the unit.

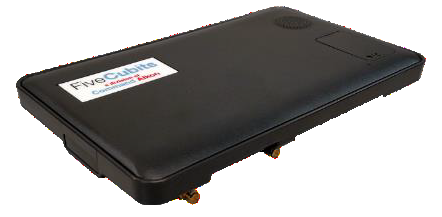

	Component	MDT OBC317
	Description	On-board computerA vehicle data monitoring device that collects diagnostic information sent by the ECU and reports it to TrackIt. meant for interpreting engine, wireless, and GPS signals and transmitting them to an in-vehicleAll machines used as a means of production on a construction site or at a batch plant. tablet wirelessly.

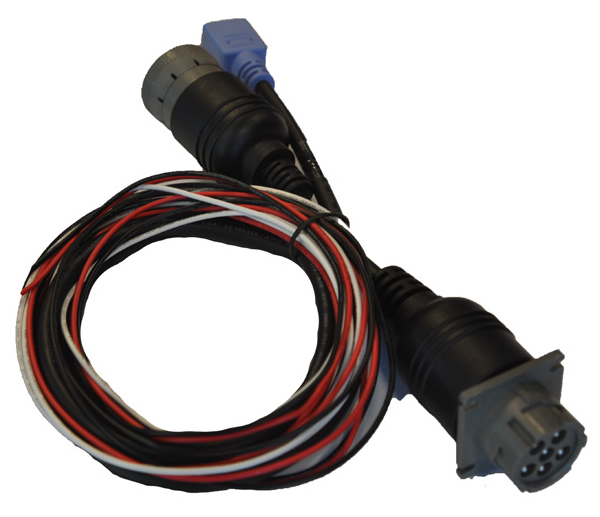

	Component	Deutsch 9-Pin
	Description	Connects the OBC to the ECUAlso known as an engine control module, this device controls engine performance by monitoring data reported by myriad built-in sensors. This data is interpreted by the ECU and then relayed to engine diagnostic hardware, such as an OBC or EDC. and engine power.

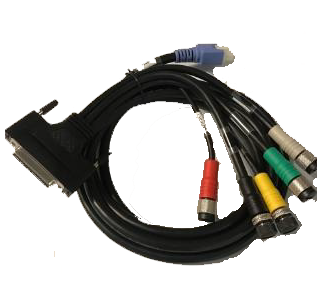

	Component	OBC Connection Cable
	Description	Allows the OBC to connect to the Deutsch 9-Pin for power and to a tablet.

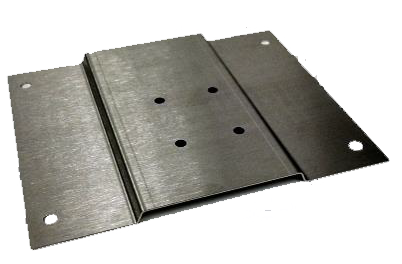

	Component	OBC Mounting Bracket with mounting screws
	Description	Metal bracket meant to secure the OBC to the inside of a vehicle.
	Component	Cellular and GPS Antennae (Option 1)

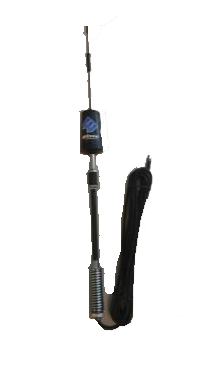

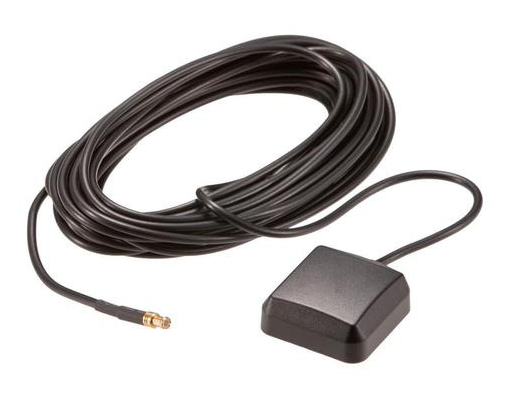

	Description	Mirror mount whip SPRING Mirror mount bracket GPS puck
	Component	Cellular and GPS Antennae (Option 2)

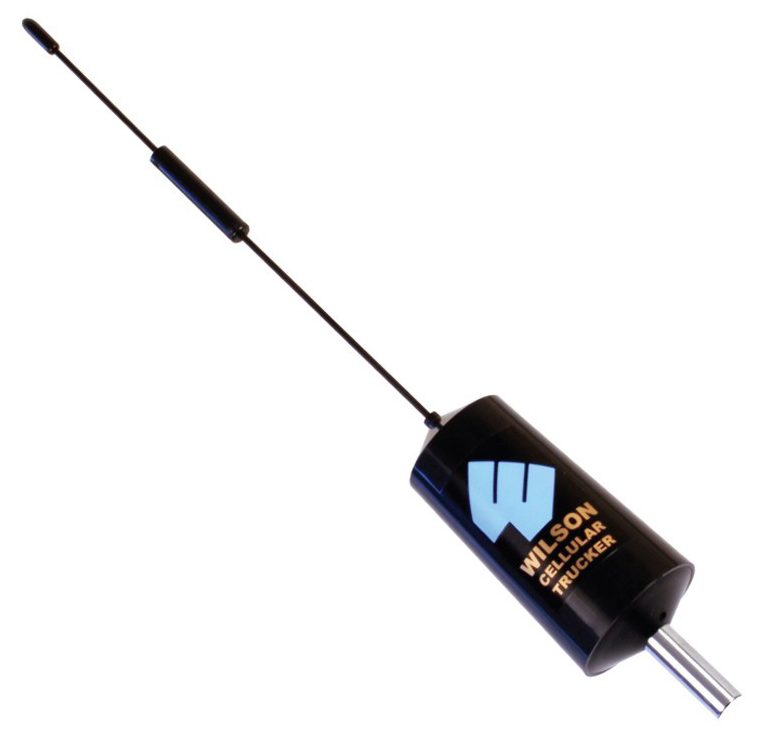

	Description	Roof mount whip NMO 14' RG58 cable (not shown) GPS puck
	Component	2N1 Roof Mount GPS/CELL SHARK FIN (Option 3)
	Description	Receives both GPS and cellular signals.
	Component	2N1 GPS/CELL WEDGE (Option 4)
	Description	Receives both GPS and cellular signals.

Required tools & equipment

• Four (4) sheet metal screws to secure the OBC mounting bracket to the wall of the cab (sizes may vary depending on the location of the unit)
• Tools for mounting antennas to the roof of the vehicle, if applicable, including drilling tools, bits, bolts, nuts, and screws
• Cable ties for securing cables to the vehicle
• Wire cutters
• Wire connectors
• Phillips screw driver(s) or power screwdriver
