Verify OBC Functionality		Hardware Requirements		Install the Power/Engine Diagnostic Cable		Install the OBC317 Unit		Verify OBC Functionality

Verify OBC Functionality

[The OBCA vehicle data monitoring device that collects diagnostic information sent by the ECU and reports it to TrackIt. must be connected to vehicleAll machines used as a means of production on a construction site or at a batch plant. power to exhibit the following behaviors, but the OBC will only be fully installed when it is connected to another device. The installation guides for these devices will include how to connect the OBC to each unit.]

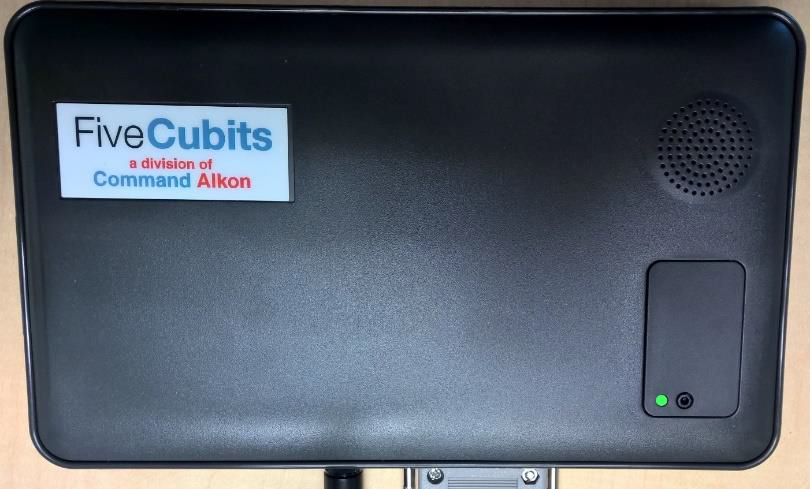

The OBC317 LED light blinks at different intervals to indicate whether or not it can connect to TrackIt. If the LED is solid and not blinking, it has successfully connected to TrackIt and is working properly.

The following describes the OBC LED codes.

1 blink	Connecting to TrackIt
2 blinks	Cannot connect to TrackIt over the data network This is common if simply taking a long time to connect. Let it run for a few minutes before researching the problem.
3 blinks	Authentication Error This occurs most often when the OBC can connect to TrackIt over the data network, but the device has not been added to TrackIt Web Console. Go to Settings > Tracking Devices in TrackIt Web Console to add the OBC device. Verify that the serial number fro the OBC is entered correctly in TrackIt Web Console.
4 blinks	Login Error This occurs most often when the OBC is not yet assigned to a vehicle. Go to Settings > Tracking Devices in TrackIt Web Console to add the OBC device and assign it to a vehicle.
5 blinks	Device Failure



You're done installing your OBC for use! See the RDT-A7.0 System Installation Guide to configure this with a tablet.
