Hardware & Software Requirements

This system consists of the Sensor Link interface box, Drum Rotation Sensor, drum magnets, cables, and mounting equipmentAll machines used as a means of production on a construction site or at a batch plant.. The TrackIt Delivery Cycle Monitoring hardware is all provided as part of the same kit. Optional components, like water flow meters, are not included or supported by Command Alkon Incorporated.

Minimum compatibility requirements

The tablet is shipped with the required hardware and software configurations in place.

For troubleshooting purposes, the following requirements exist:

• Android OS 6.0.1+
• Android System WebView 62+
• EventEngine data recorded by TrackIt that includes fault codes and driver behaviors like hard braking. Service Manager (ESM) v2.0.3+
• TrackIt Android v14.4.46+
• Tablet with cellular
• Full MDM or TrackIt Remote Support
• Sensor Link application 5.5.7.10+

TrackIt Delivery Cycle Monitoring assembly components

This TrackIt Delivery Cycle Monitoring assembly consists of three main elements: the Sensor Link interface box, Drum Rotation Sensor, and drum magnets.

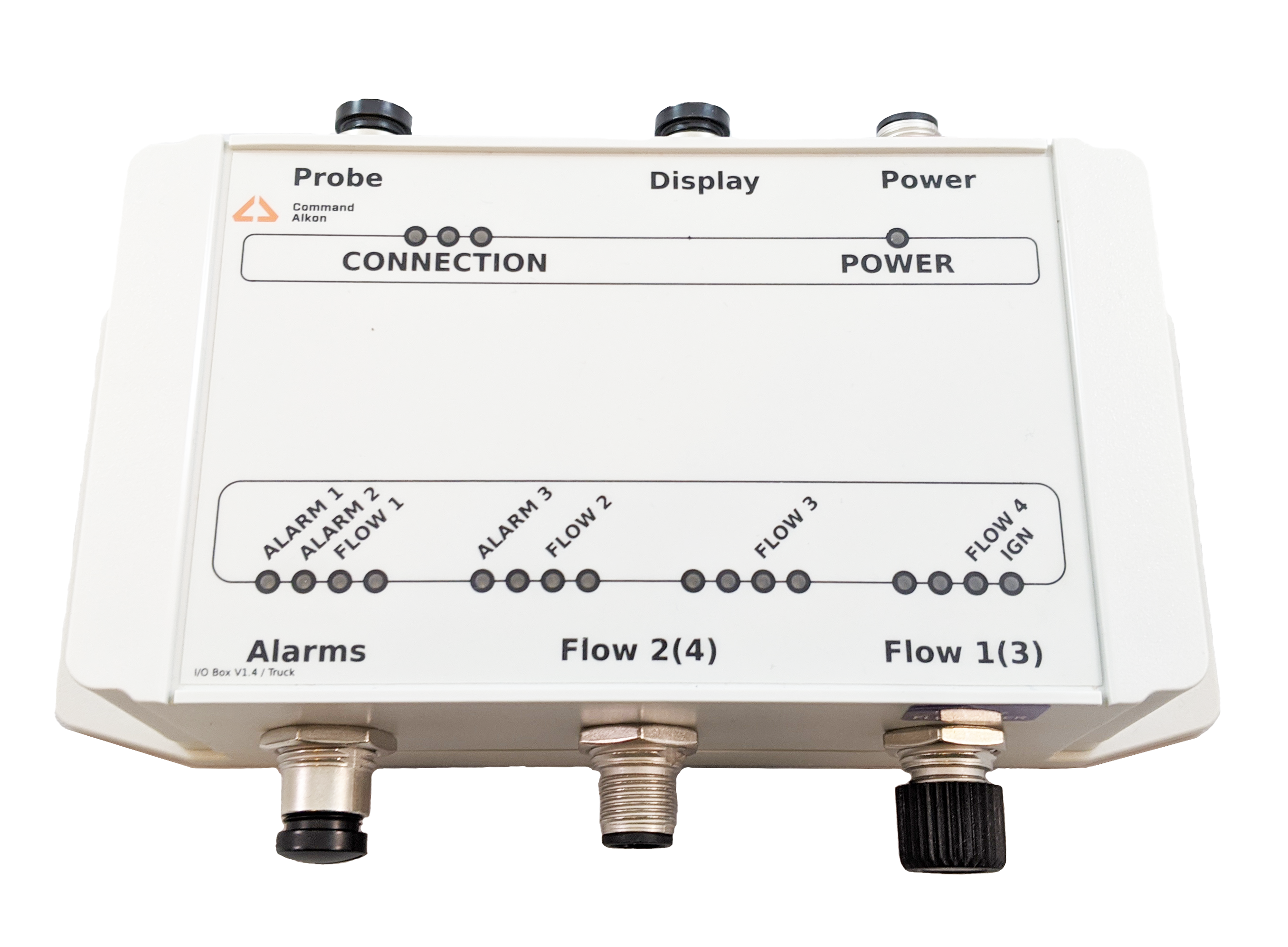

	Component	Sensor Link Interface Box
	Description	The central component that all sensor pieces connect to. This powers the Drum Rotation Sensor and routes all communication between the sensor and magnets.

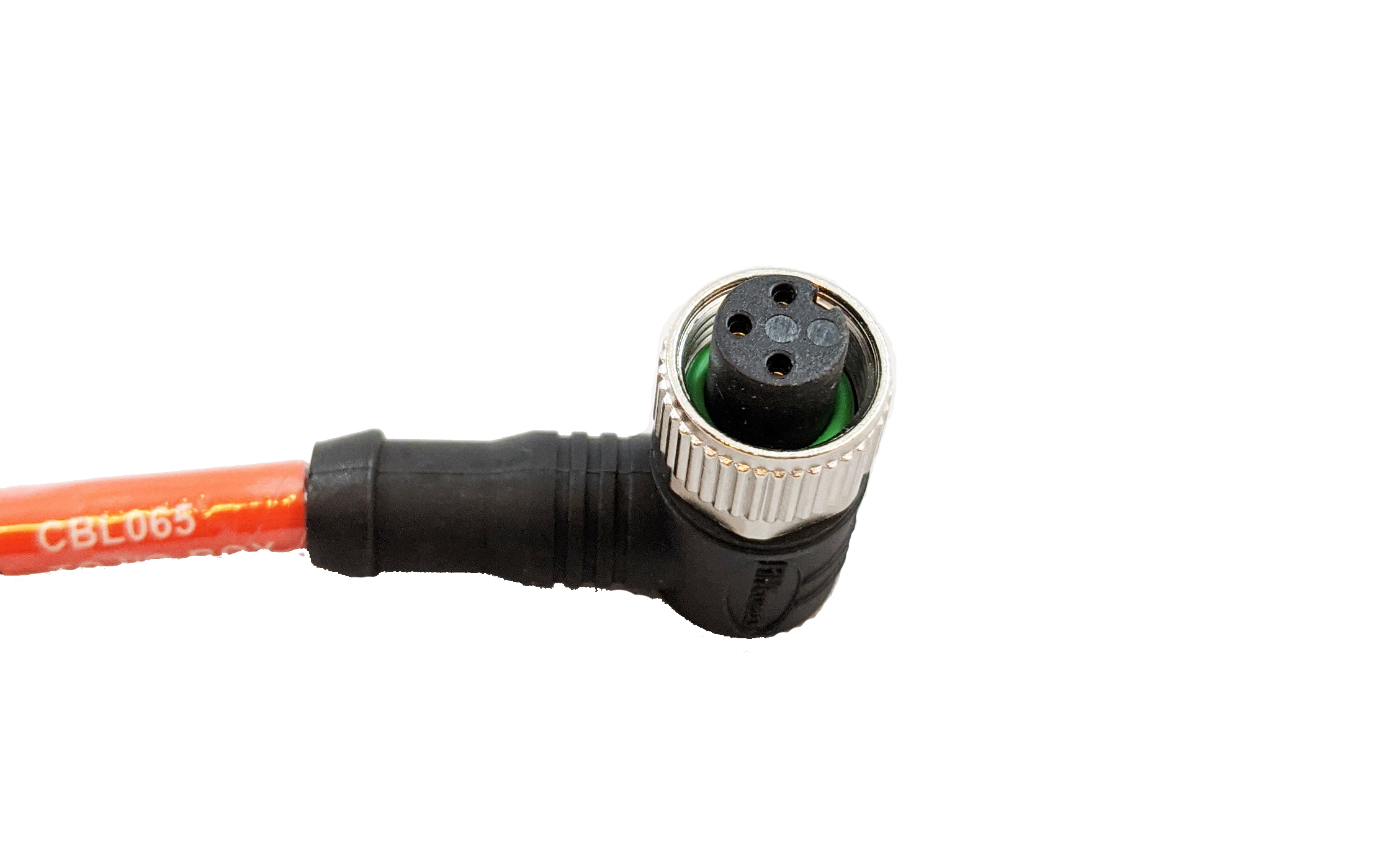

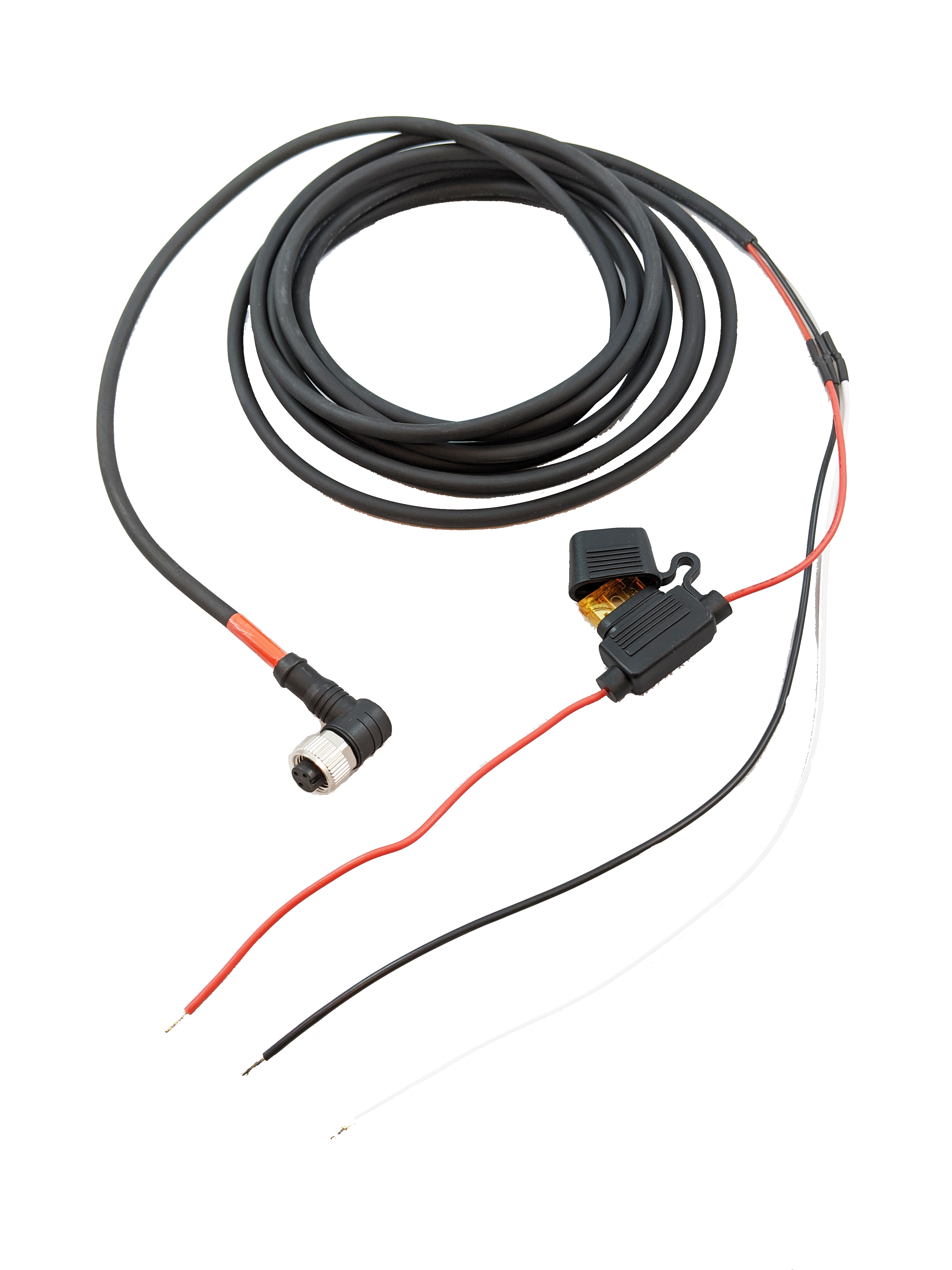

	Component	Sensor Link Power Cable
	Description	M12 connector

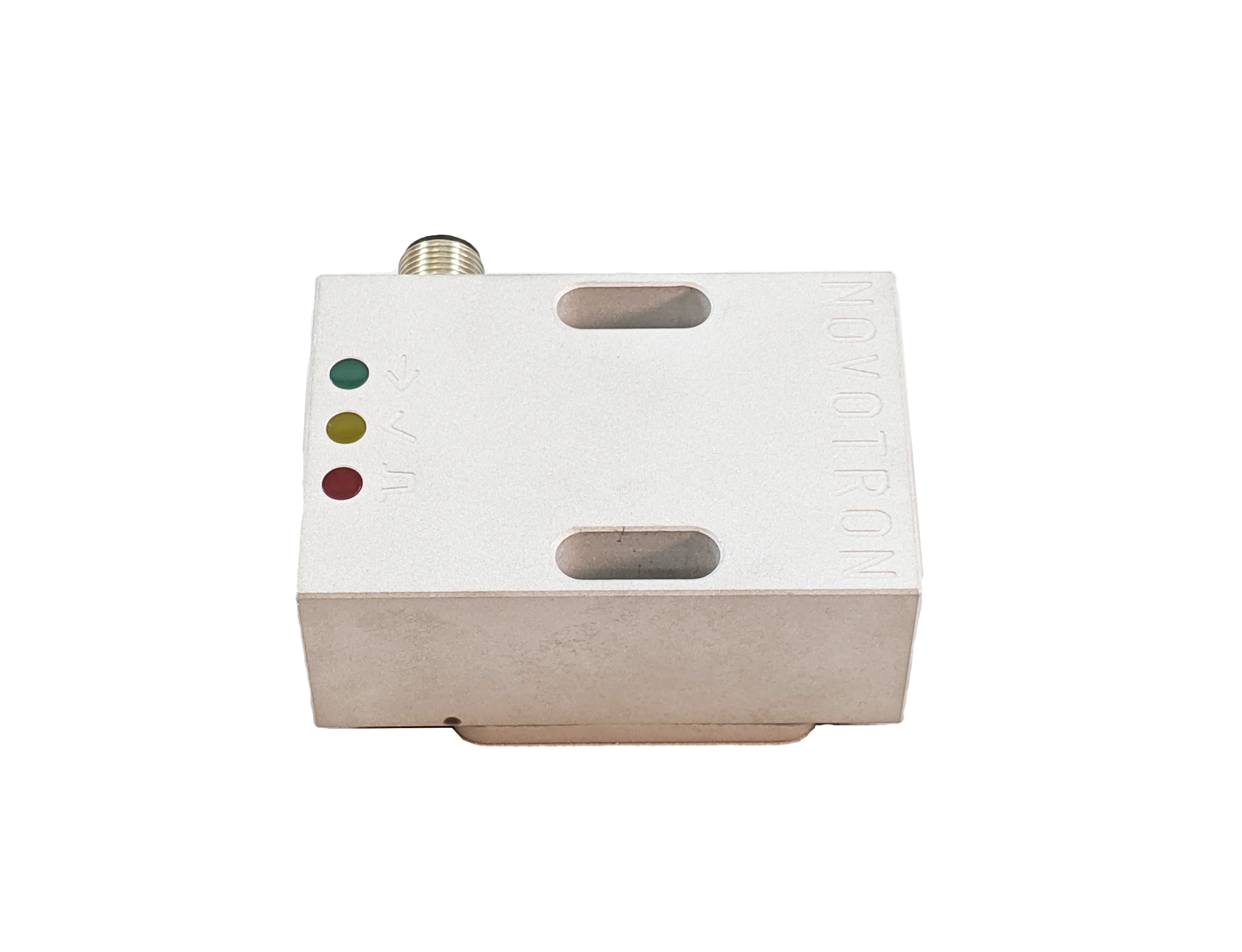

	Component	Drum Rotation Sensor
	Description	Senses passing magnets attached to the truckAll machines used as a means of production on a construction site or at a batch plant. drum to retrieve data for calculating speed and direction of the drum rotation Attaches to the mounting bracket with two bolts and connects to the Sensor Link

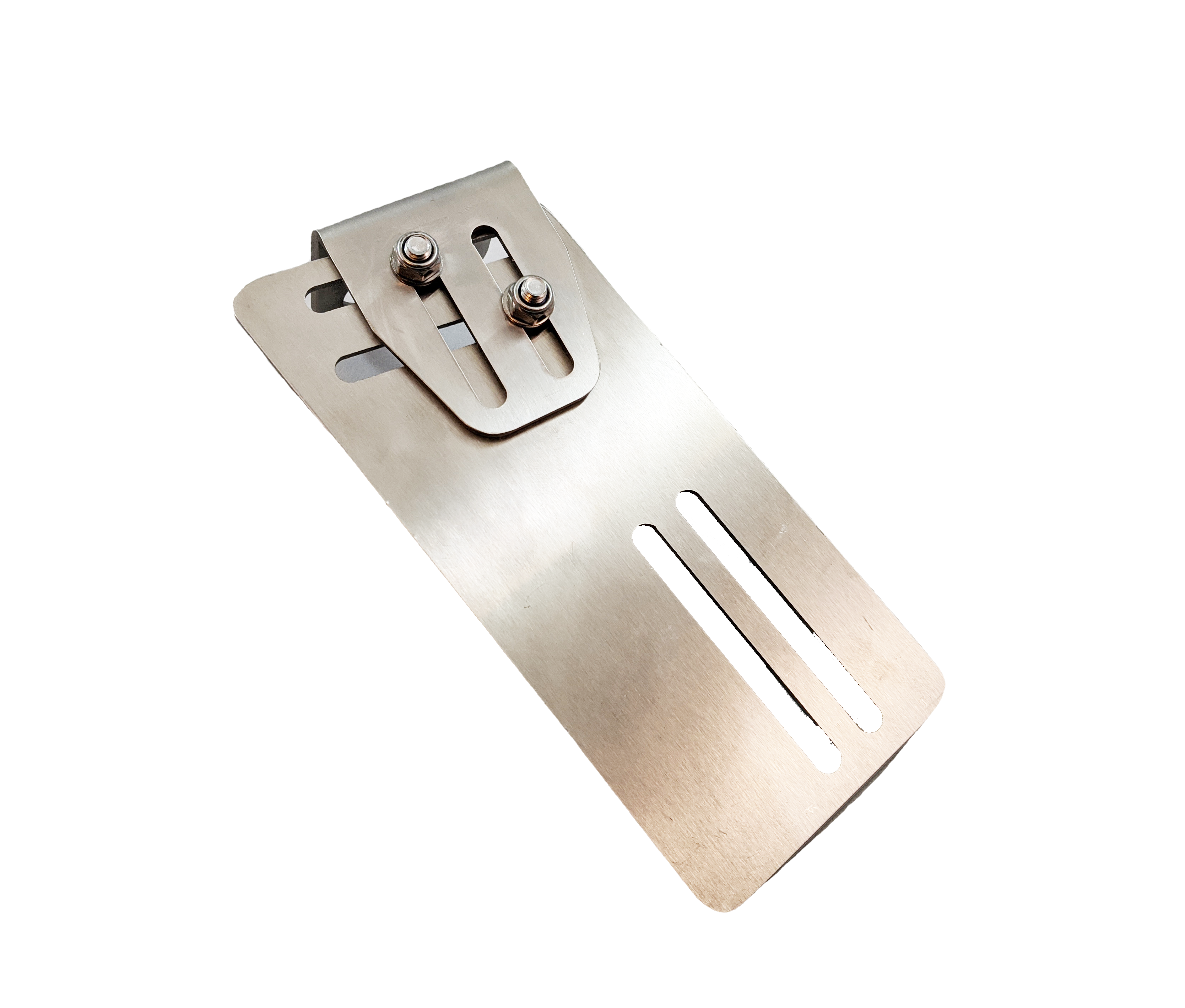

	Component	Mounting Bracket
	Description	Includes two pre-attached pieces for mounting to the concrete truck. The Drum Rotation Sensor is attached to the truck via the mount. Compatible with other sensors, such as DOT sensors.

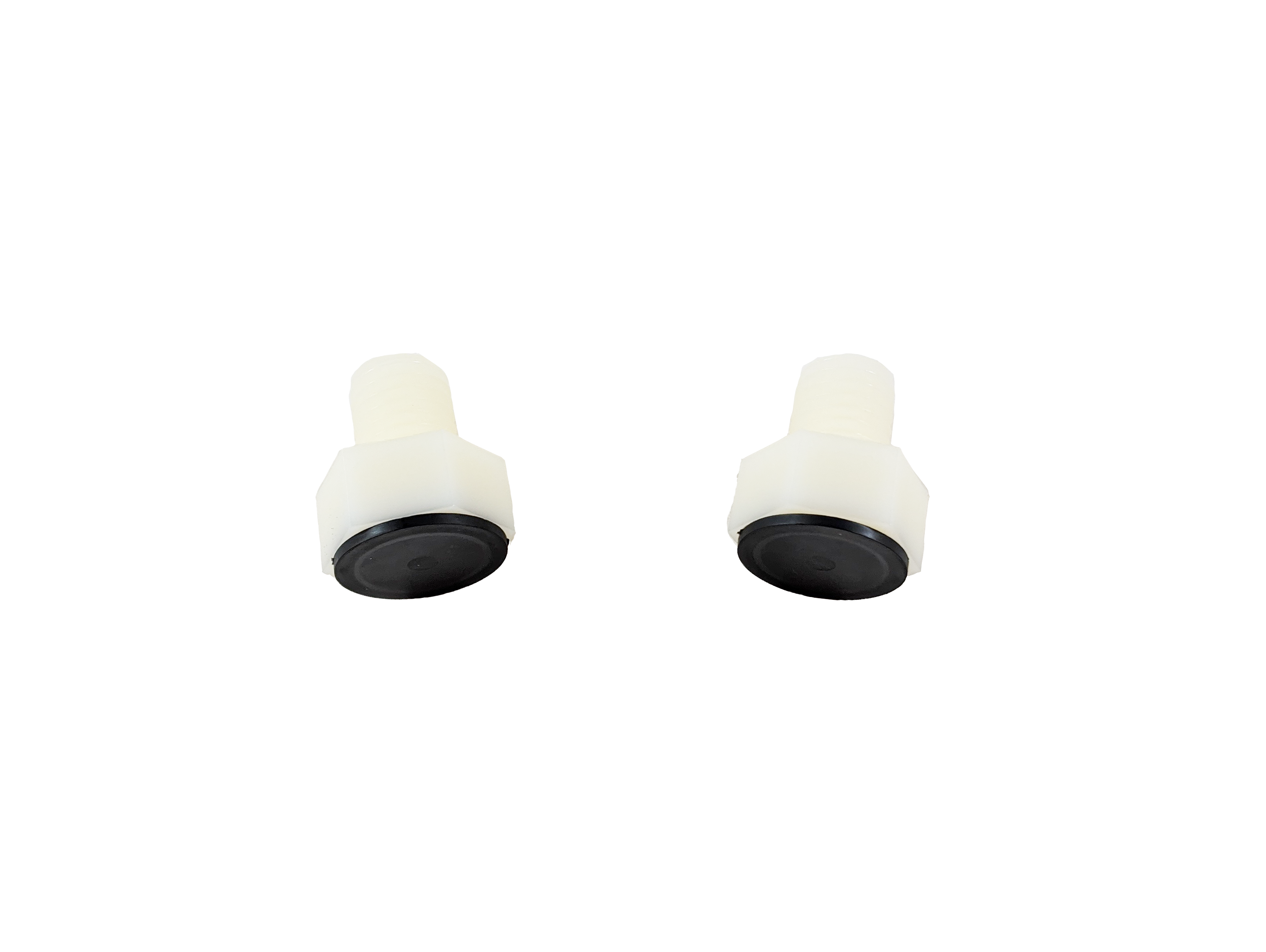

	Component	Bolt Magnets
	Description	Four (4) Bolt magnets are included in a basic kit Four (4) Disc magnets may also be used If magnets have previously been installed, these may vary in shape and number

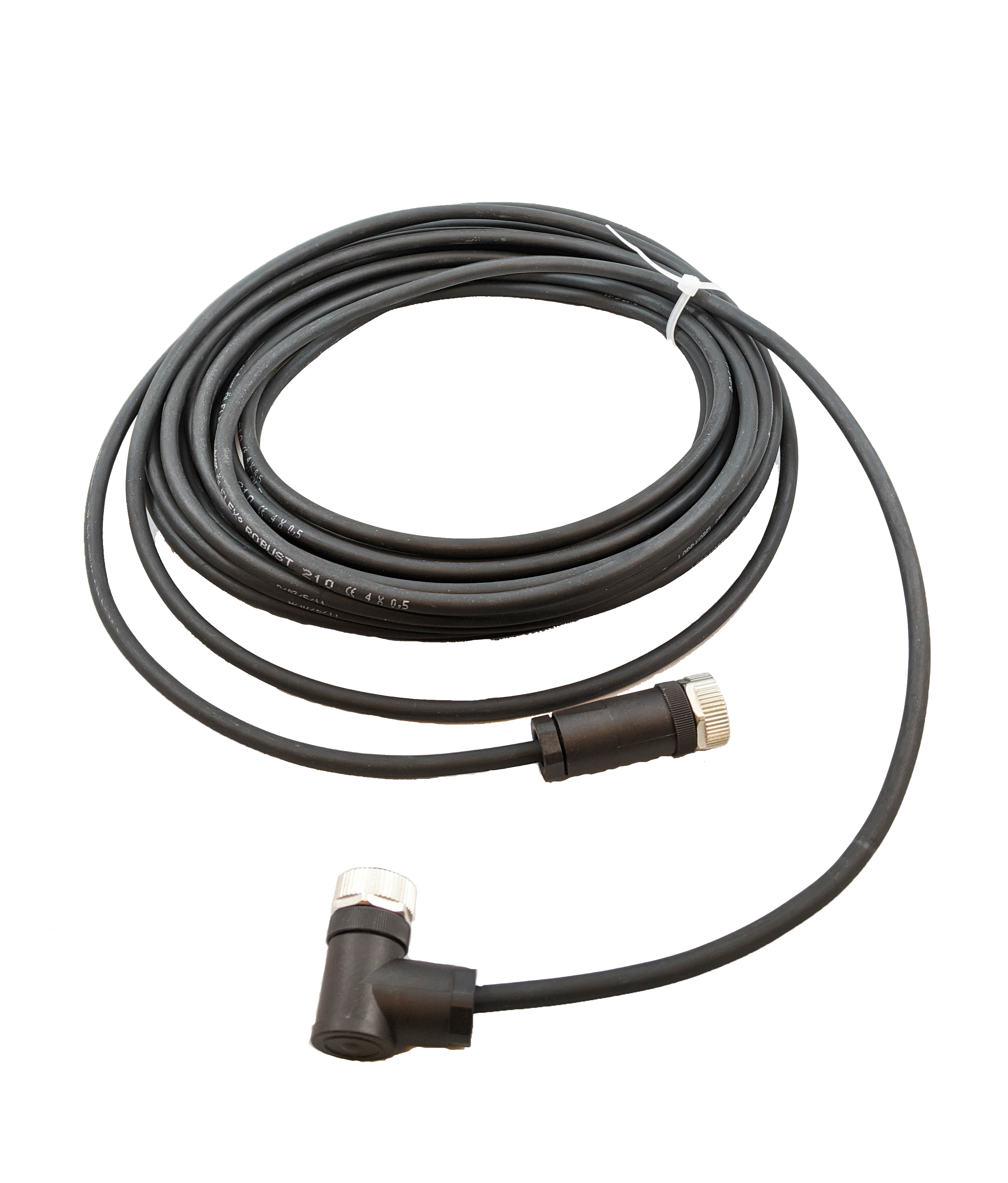

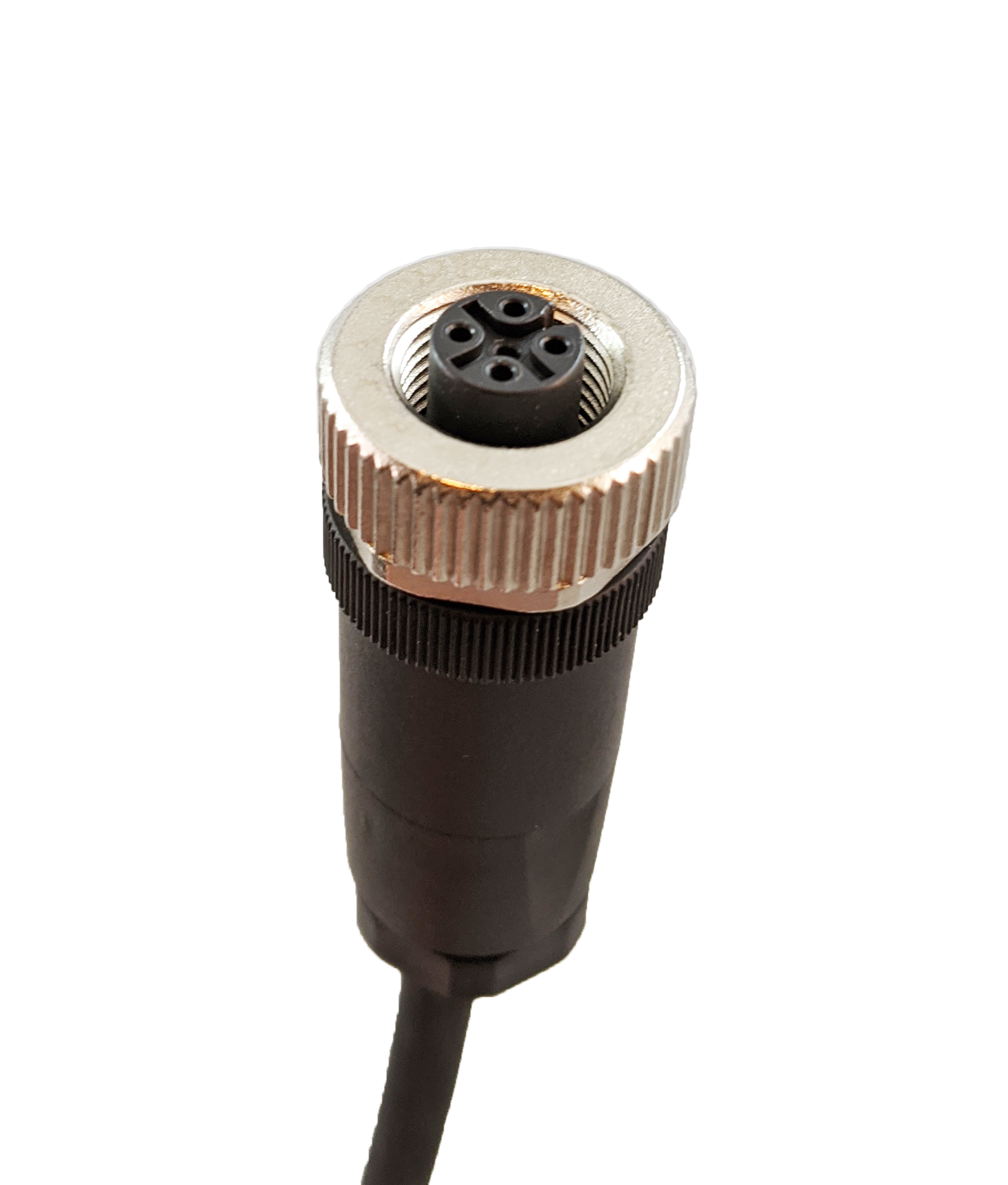

	Component	Drum Rotation Sensor Cable
	Description	Current available length(s) of cable: 10m Attaches to the Drum Rotation Sensor and feeds into the Sensor Link

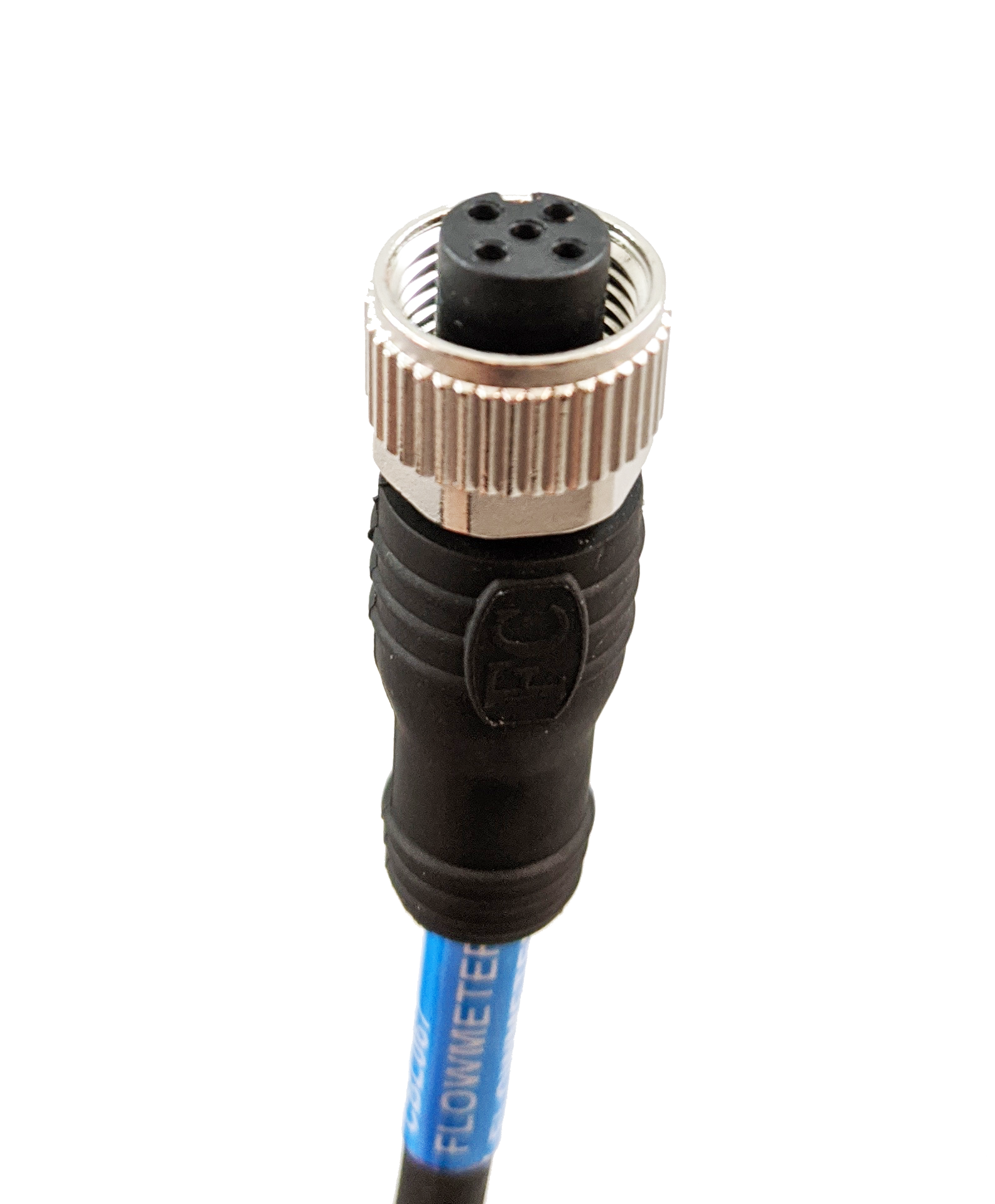

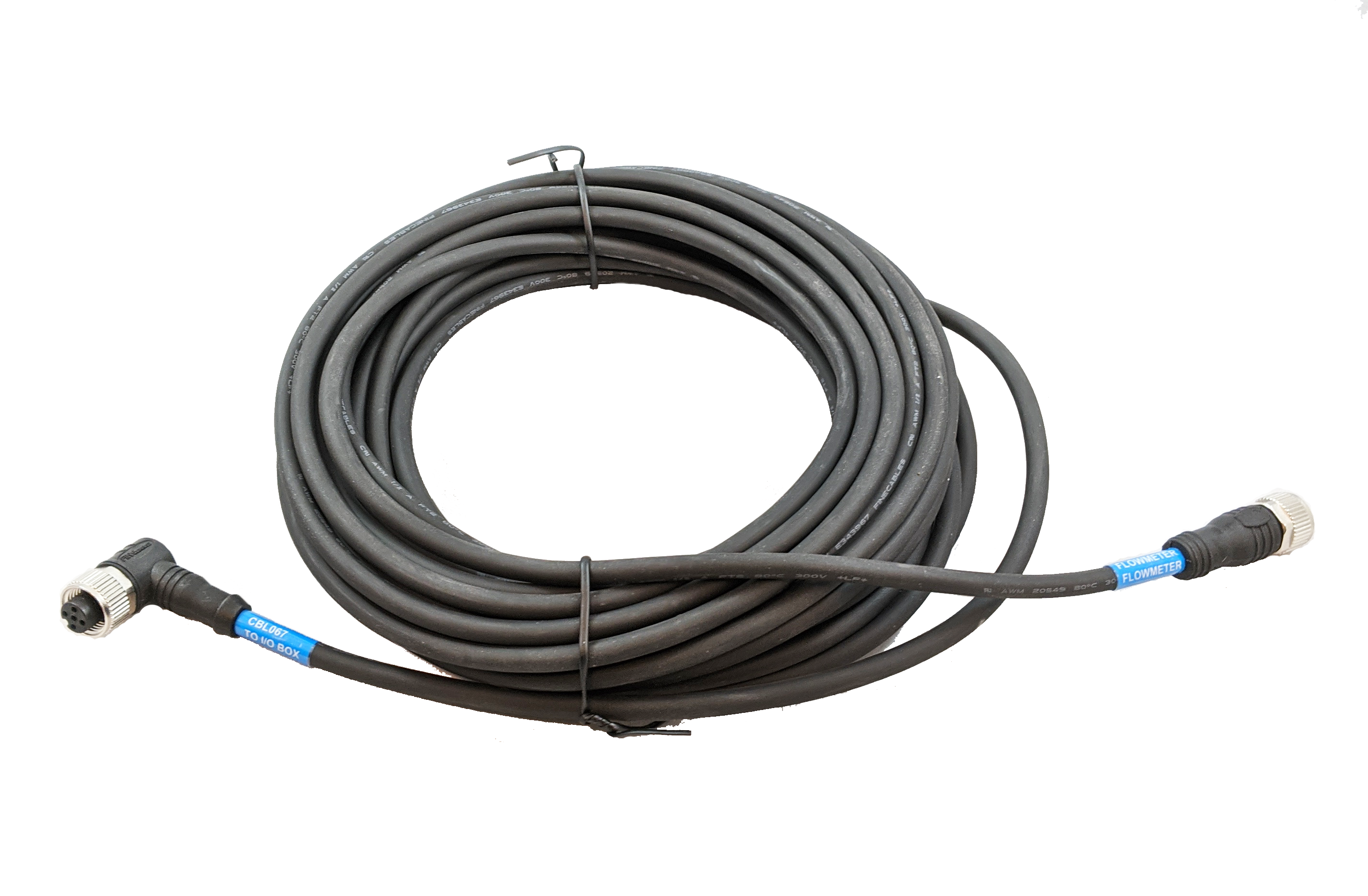

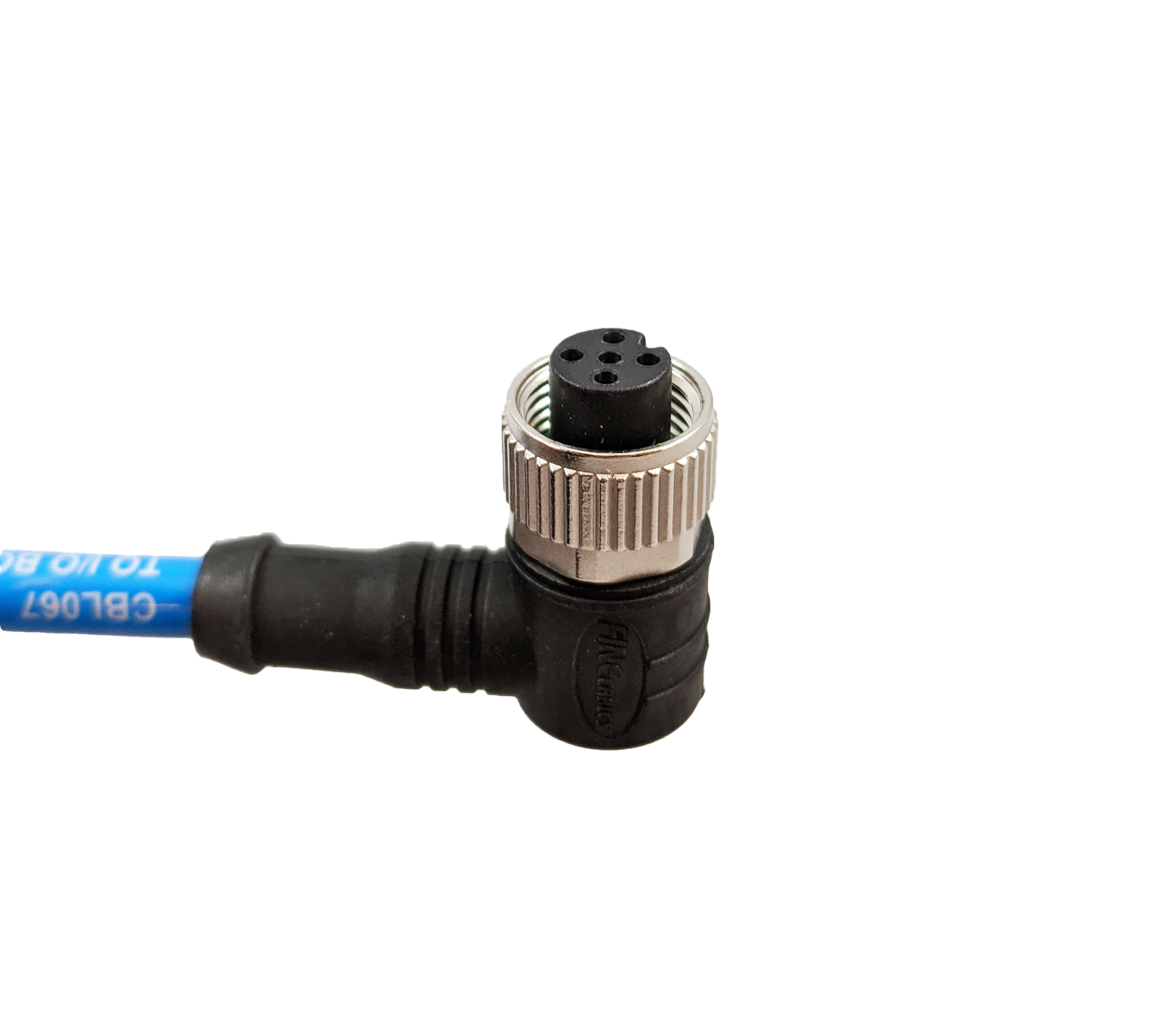

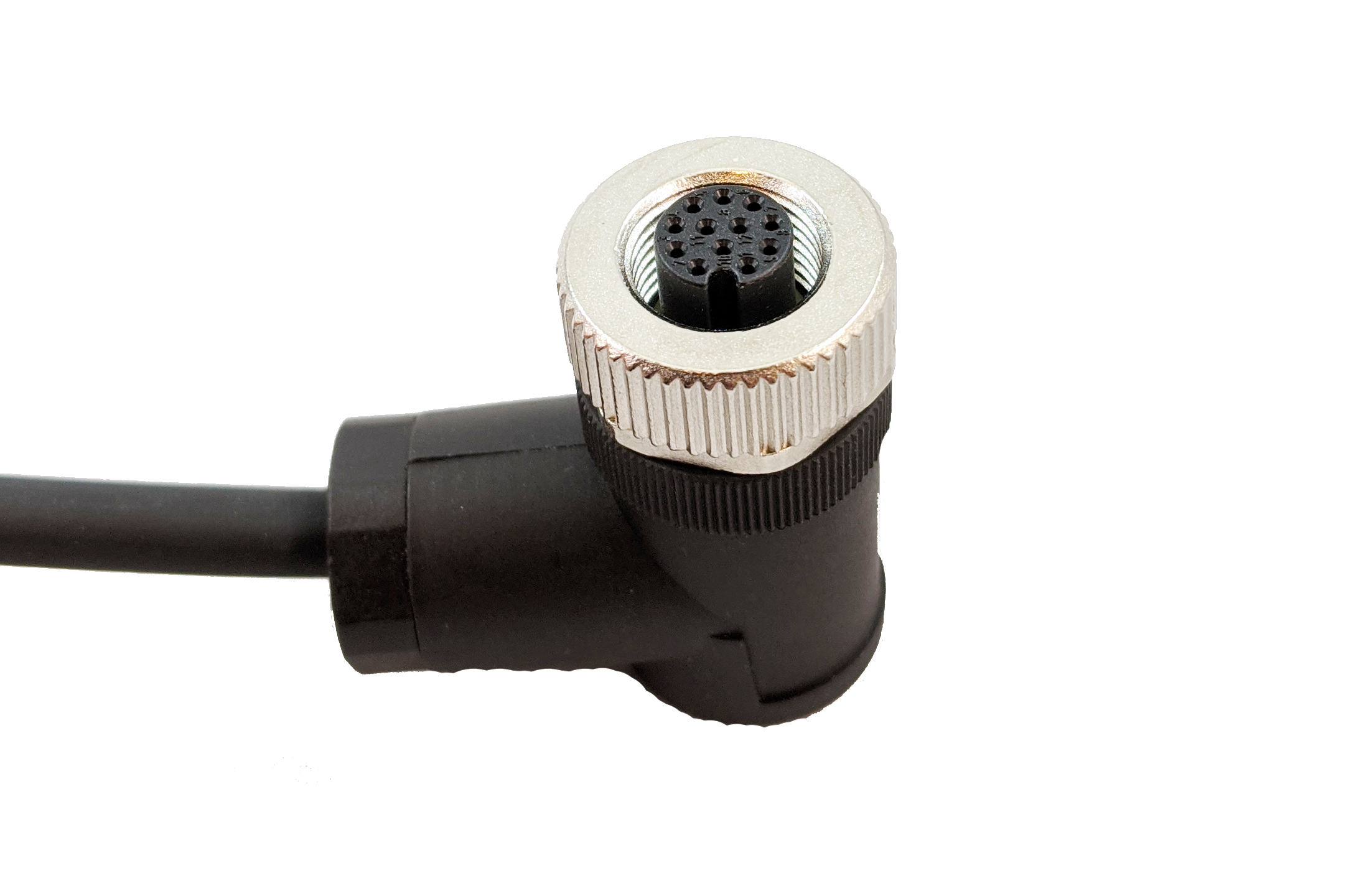

	Component	Waterflow Meter Cable (optional) The TrackIt Delivery Cycle Monitoring assembly is not shipped with a water flow meter, but the assembly is compatible with water flow meters via this cable.
	Description	Current available cable length(s): 10m Connects the flow meter and Sensor Link Compatible with flow meters with a 5-pin M12 connector

Required tools & equipment

Use the following additional tools and equipment to install the TrackIt Delivery Cycle Monitoring assembly:

• Cable ties for securing the assembly cables
• 3/4" deep socket and 3/4" shallow for bracket mount
• 6" extension and ratchet to clear the bracket depth and get into the nook of the drum transmission support
• 10mm socket for bracket hardware
• Flush cutters
• Electrical tape
• Tape measure
• Pry tools of fiber or plastic for mounting magnets
• Wire crimpers
• Wire strippers
• Any other tools required to mount the sensor and magnets
