Install the Water Flowmeter Cable

While the TrackIt Delivery Cycle Monitoring assembly is compatible with certain water flow meters, a flow meter is not included with the assembly. Customers must supply their own. If you have a water flow meter that is not compatible with the Sensor Link, Command Alkon Incorporated recommends you replace them with compatible flow meters.

You may also wish to monitor water added to a loadThe total amount of concrete or asphalt that is being or has been batched for delivery. after it leaves the plantA production plant or material storage location.. Water flow meters are available to measure water added, and send electrical pulses to a measurement system (e.g., 100 pulses per gallon). The Sensor Link can also receive these signals and report water added to the driver as well as web reporting services.

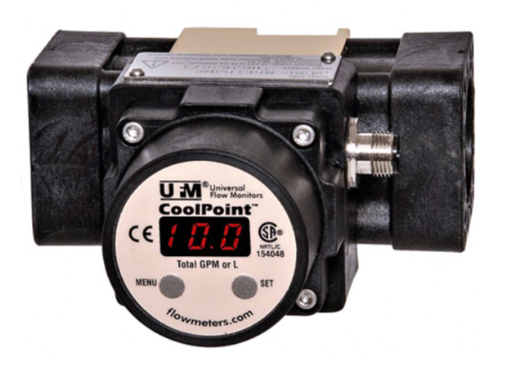

A common flowmeter is the CX8 series from Universal Flow Meter, with a 5-pin M12 connector. A 5-pin M12 connector is required if you choose to use a different type of flowmeter.

For proper installation the flowmeter must be installed and mounted inline with the drum water feed. Do not install in the wash water feed.

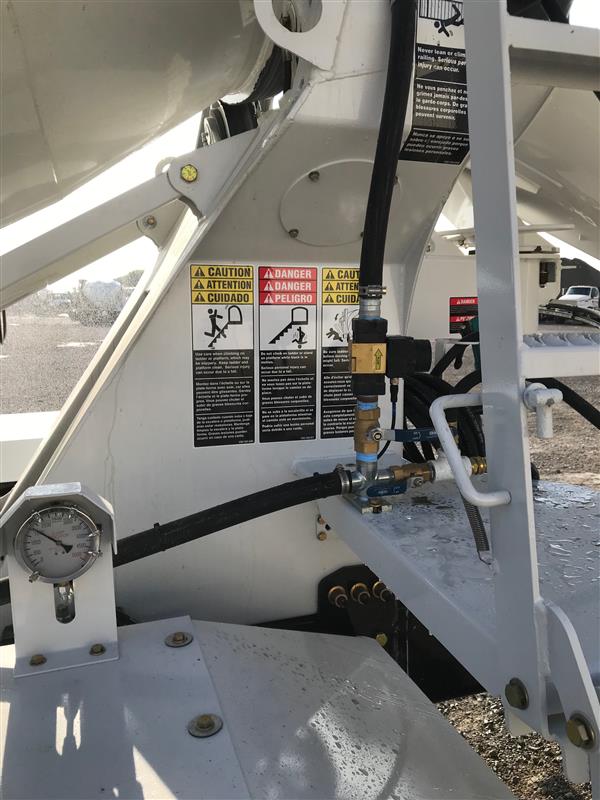

Picture of Flowmeter connection to the inline drum feed

  1. Run the water flowmeter cable between the flowmeter and the Sensor Link inside the vehicleAll machines used as a means of production on a construction site or at a batch plant. cabin.
  2. Ensure the Sensor Link power cable is connected to the Sensor Link. Power is provided to the flowmeter from the Sensor Link box at the same voltage wired to the Sensor Link’s power input.
Use pipe dope + hand tight and then .25 to .5 of a turn as over-tightening can cause damage.
