This installation kit includes a Samsung Galaxy Tab® E, RAM® Mount, and ProClips® Dock. The Samsung Galaxy Tab® E has been provisioned in-house and is ready for installation when shipped.
Compatibility requirements
The Samsung Galaxy Tab® E and dock are shipped with the required hardware and software configurations in place.
For troubleshooting the Samsung Galaxy Tab® E setup, refer to the software and hardware requirements for the Engine Data Controller (EDC) hardware and software requirements.
Hardware components
Ensure the following components are part of your installation kit:
|

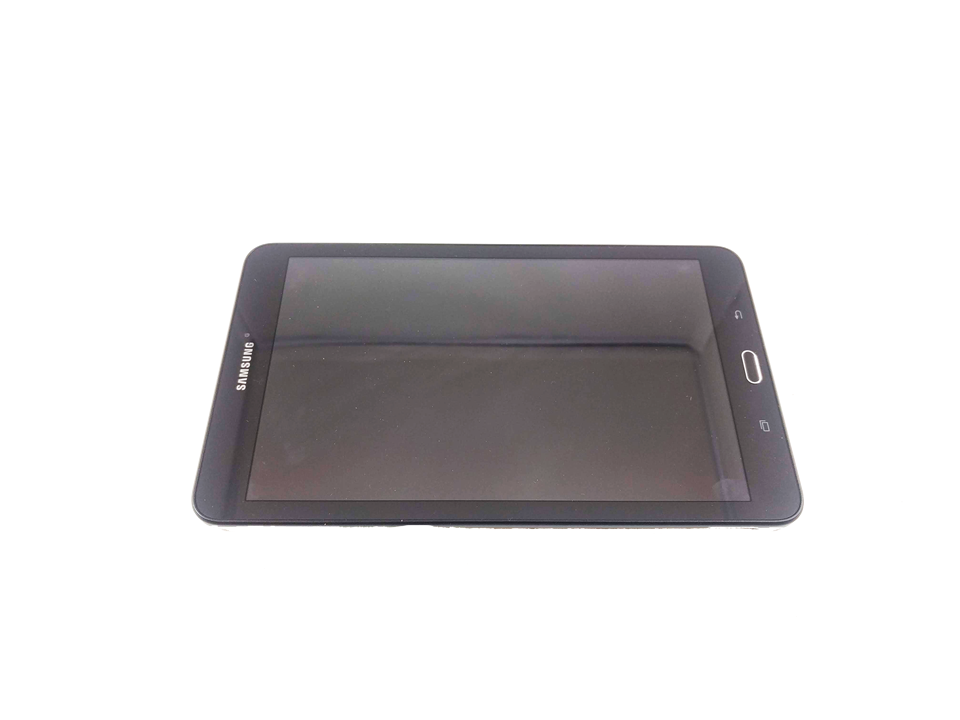

Component | Samsung Galaxy Tab® E |
|---|---|---|
| Description | Android tablet with Android OS 6.0.1+ installed. | |
|

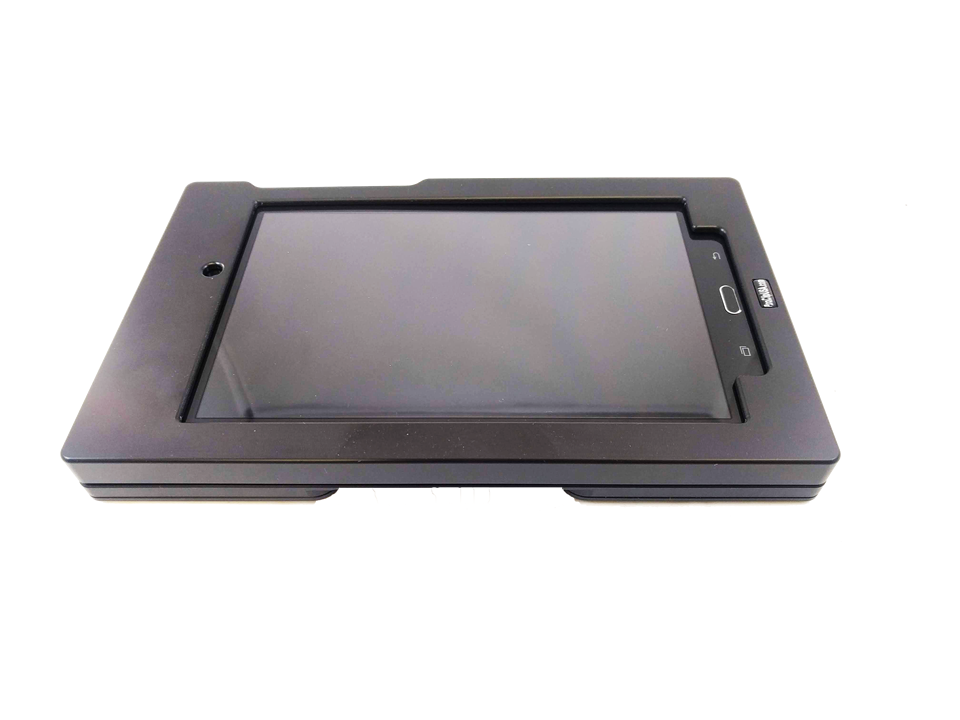

Component | ProClips Tablet Sleeve |
| Description |
Tough sleeve for containing the tablet. The front and back plates are attached together with screws after the tablet is inserted. |
|
|

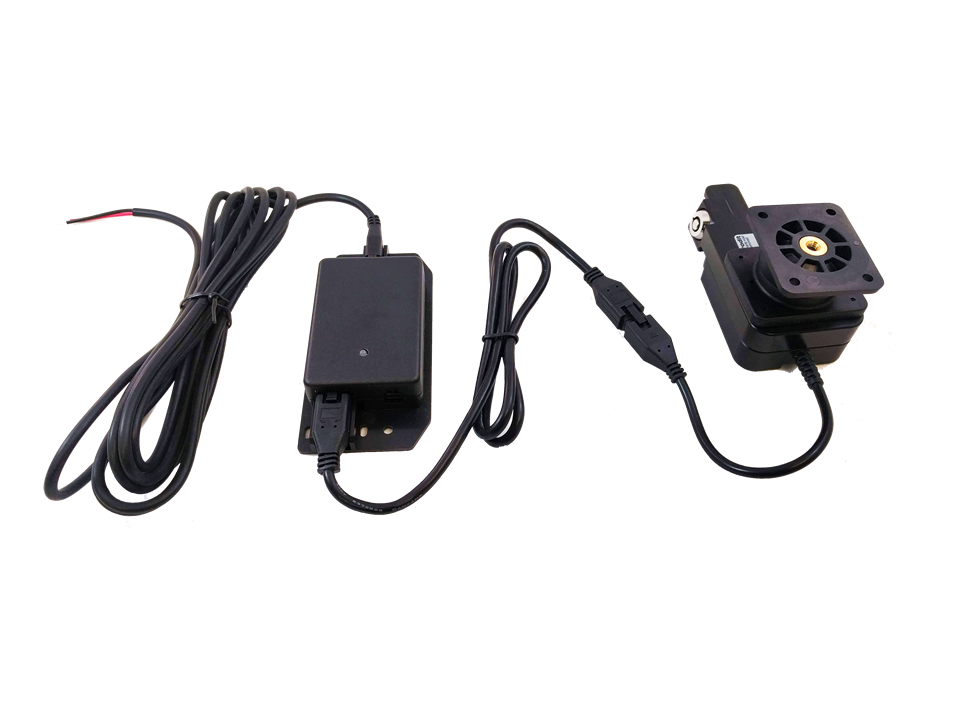

Component | ProClips Power Block |
| Description |
|
|
|

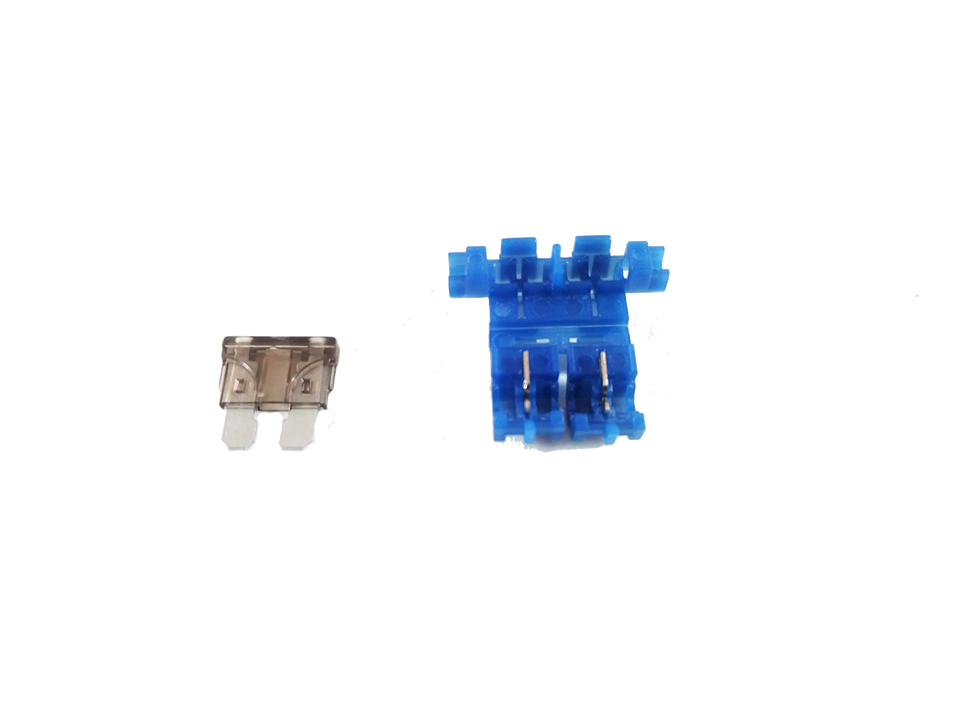

Component | Fuse 2A, with holder |
| Description | Inline fuse for connecting the power block to the vehicle's power supply. | |
|
Component | 1 RAM Mount |
| Description | Rugged, adjustable mount. |
Misc. Components

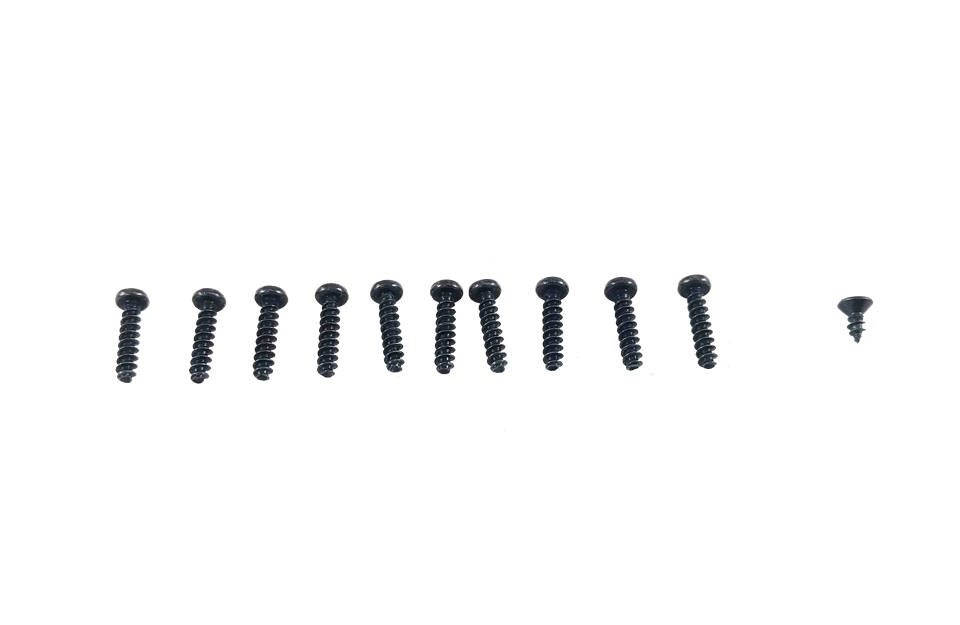

 | dock screws |

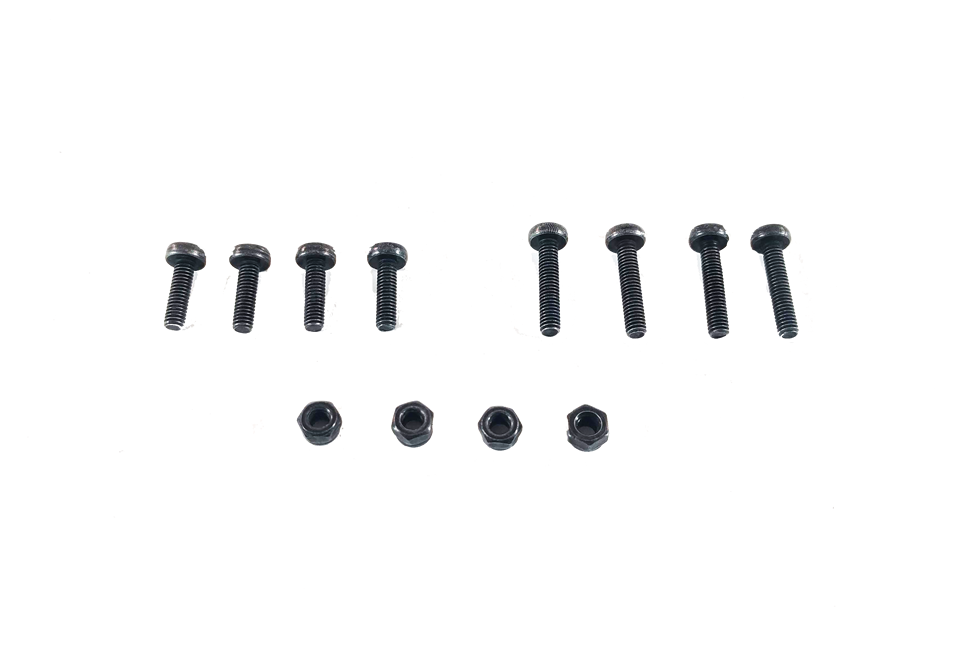

 | mount screws |

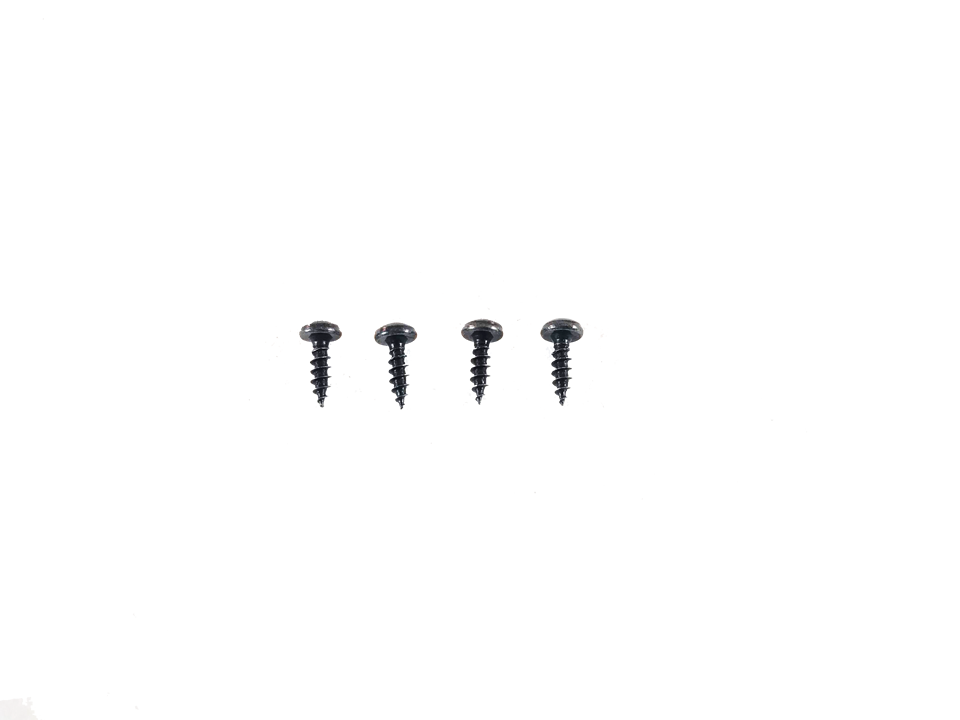

 | charging block screws |

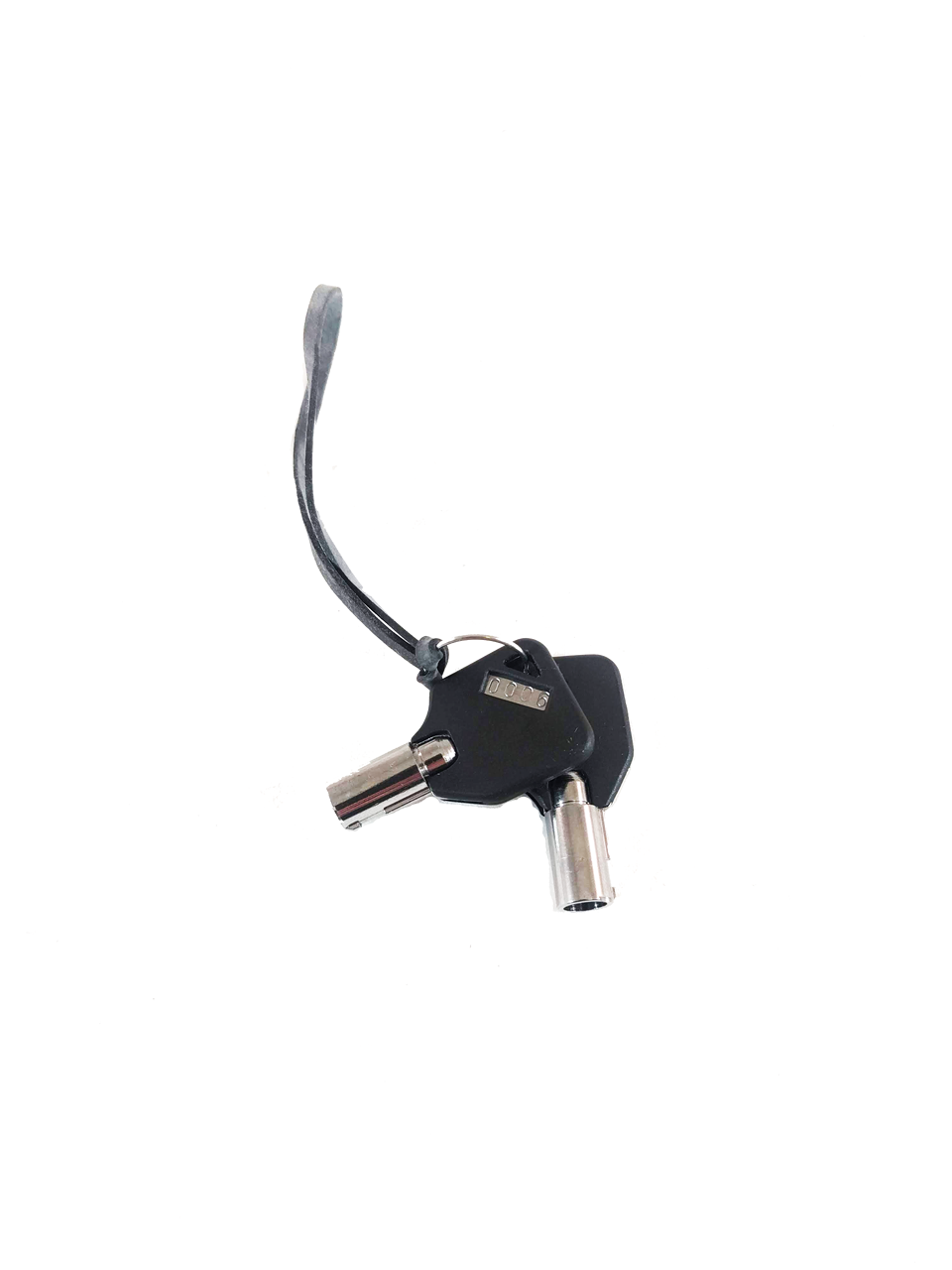

 | dock keys |
Required tools & equipment
- Phillips screwdriver or power screwdriver
- Pliers or wrench
- Wire cutters
- Wire stripper
- Wire connector
- Drill
- Additional screws
To test the tablet and dockAfter verifying all the items above are included in the installation kit, perform a test of the tablet and dock to make sure both are functional.
- To test the tablet, plug it into a power supply with a USB charger and turn the tablet on to verify the tablet functions.
- To test the dock, you will first need to mount and attach it to the vehicle's power supply.
|
|
