This system consists of the EDC, driver tablet, diagnostics cable, and mounting equipmentAll machines used as a means of production on a construction site or at a batch plant.. The EDC and tablet are both provisioned in-house and shipped ready for configuration.
Compatibility requirements
The EDC and tablet are shipped with the required hardware and software configurations in place.
For troubleshooting purposes, the following requirements exist:
- Android OS 6.0.1+
- Android System WebView 62+
- TrackIt EDC Build
- EventEngine data recorded by TrackIt that includes fault codes and driver behaviors like hard braking. Service Manager (ESM), EDC Build
- Tablet with cellular and mobile hotspotGeographic areas marked on a map that act as destinations for driver navigation or triggers for automated behaviors in TrackIt. coverage included
- J1939 and J1708 diagnostic connectors
EDC system components
This vehicleAll machines used as a means of production on a construction site or at a batch plant. data monitoring system consists of three main elements: EDC, driver tablet, and power and diagnostic cable.
|
|
Component |
Command Alkon Incorporated Engine Data Controller (EDC) |
|---|---|---|
| Description |
|
|
|
|

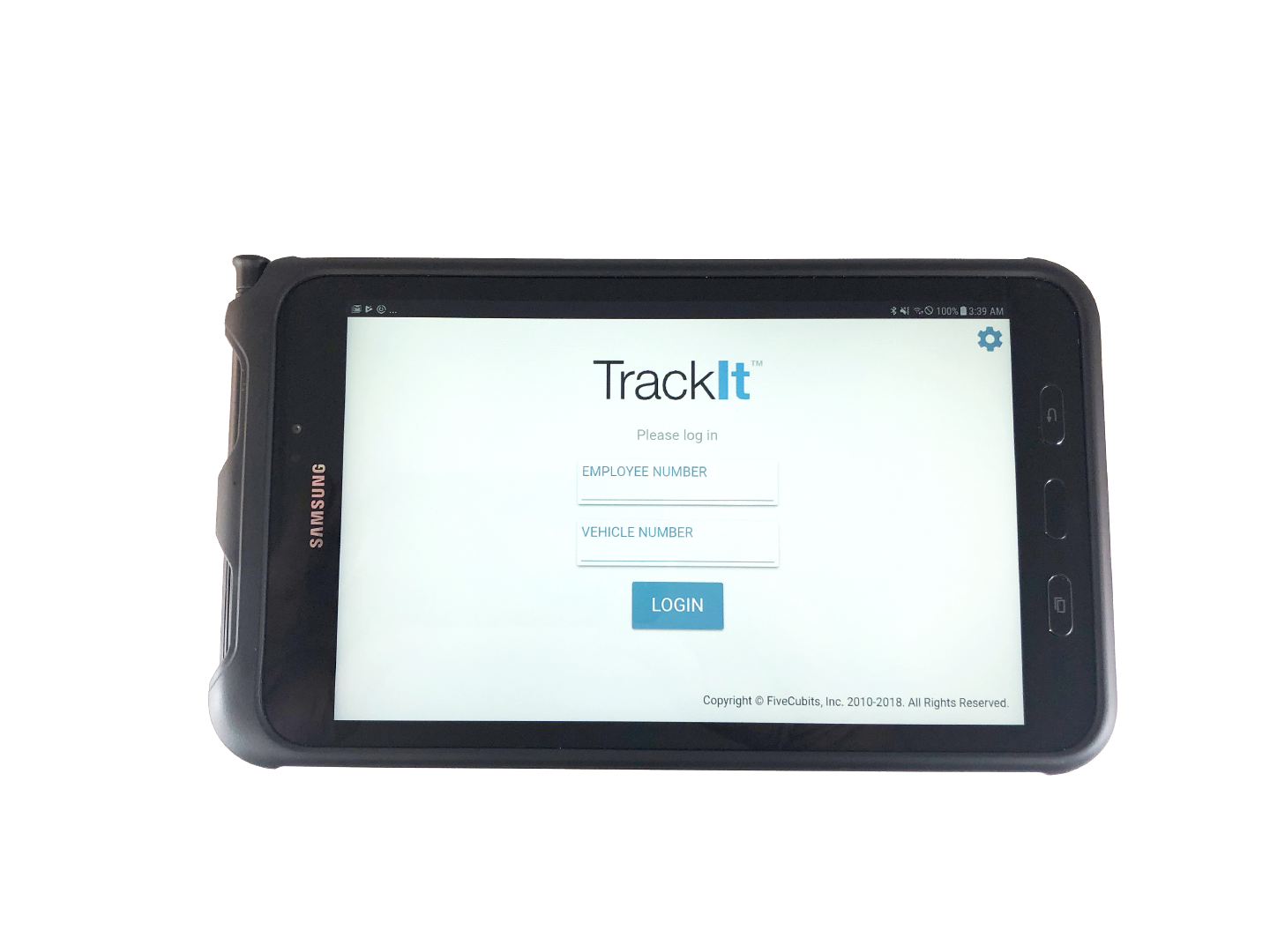

Component | Android Tablet |
| Description |
This consists of the tablet, mount, and mount assembly equipment. New installations of TrackIt Android include one of the following tablet smart devices:
|
|
|
Component | Diagnostics Cable |
| Available Types |
Depending on the configuration of your trucksAll machines used as a means of production on a construction site or at a batch plant., you will receive one of several supported cable types. These use a compact design that facilitate placing the EDC hidden from driver view. A full list of diagnostics cable types, connector mapping, and cable installation instructions are available in the Power & Engine Diagnostic Cables section. |
Required tools & equipment
You only need the following equipment to install the EDC:
- Cable ties for securing the diagnostic cable
- Any other tools required to access the truckAll machines used as a means of production on a construction site or at a batch plant.'s engine diagnosticsTrackable vehicle data reported by the ECU. Such information allows a company to proactively monitor the health of equipment. port
|
|
|
