The cabling between your Engine Control Unit (ECUAlso known as an engine control module, this device controls engine performance by monitoring data reported by myriad built-in sensors. This data is interpreted by the ECU and then relayed to engine diagnostic hardware, such as an OBC or EDC.) and on-board computer (OBC) acts as the nervous system for transmitting vehicleAll machines used as a means of production on a construction site or at a batch plant. data to the driver tablet.
The cables supported by the EDC are shown below along with basic instructions on how to install them within your vehicle.

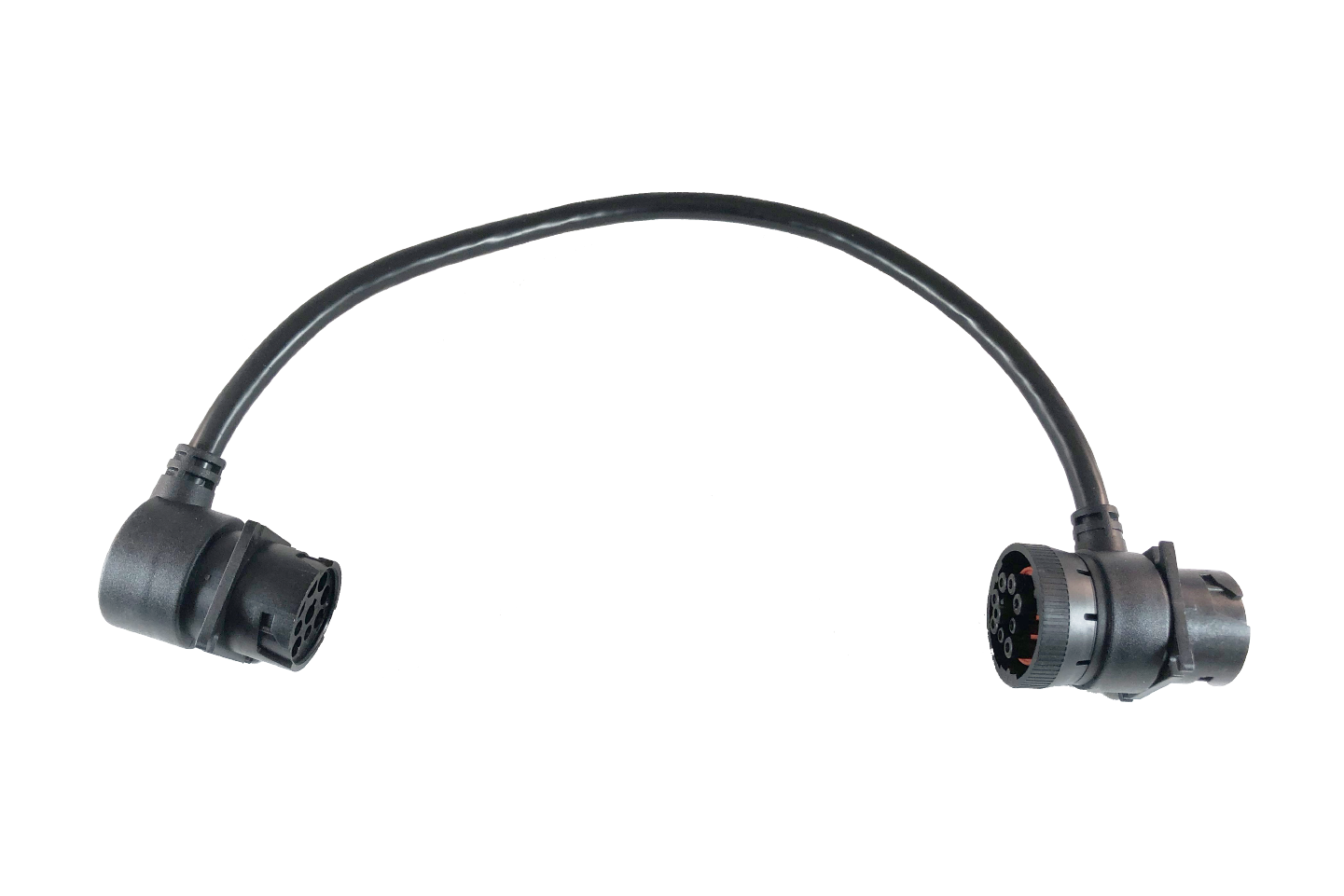

Type 1 Deutsch 9-pin, flanged
|

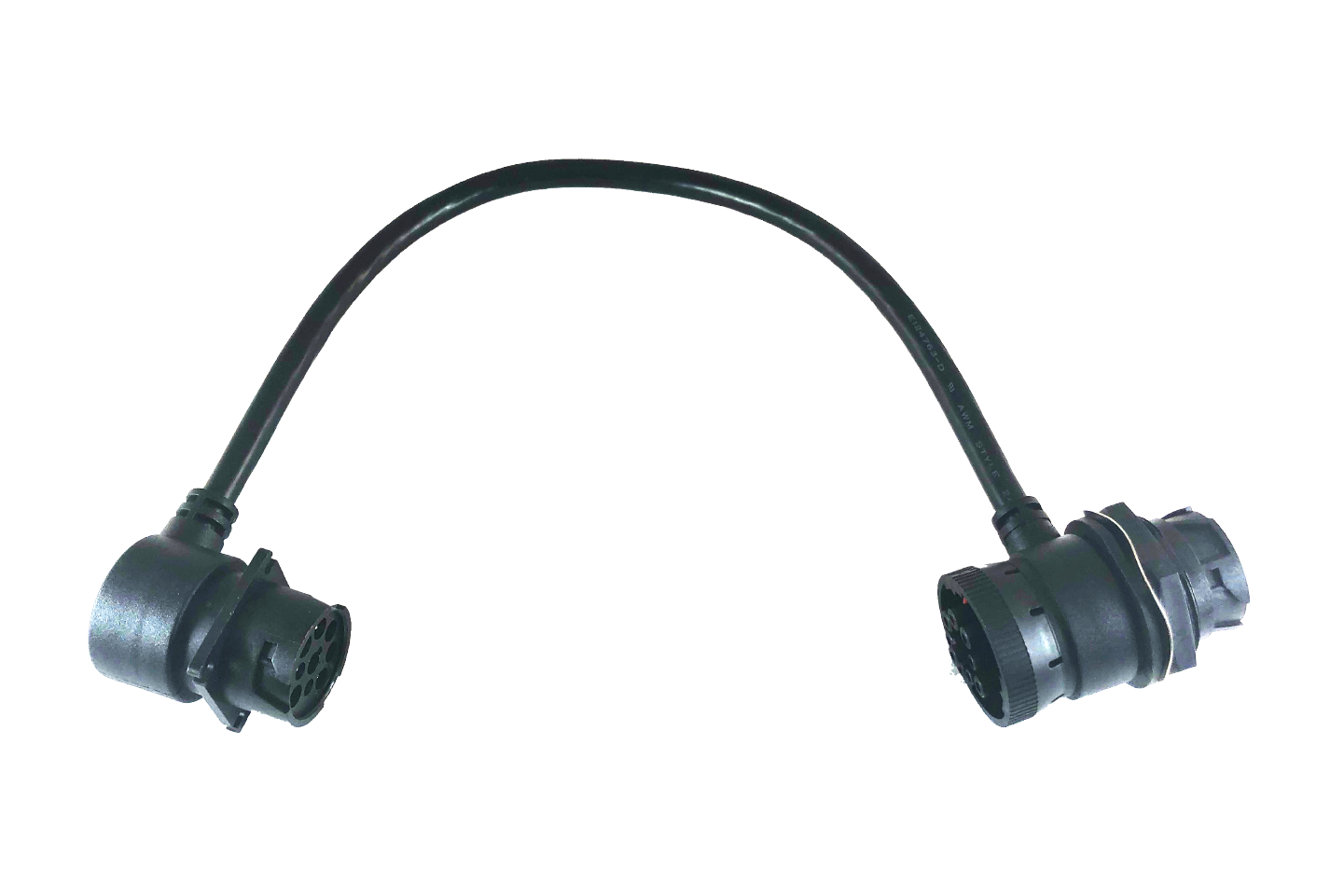

Type 1 Deutsch 9-pin, threaded
|
Type 2 Deutsch 9-pin, threaded
|

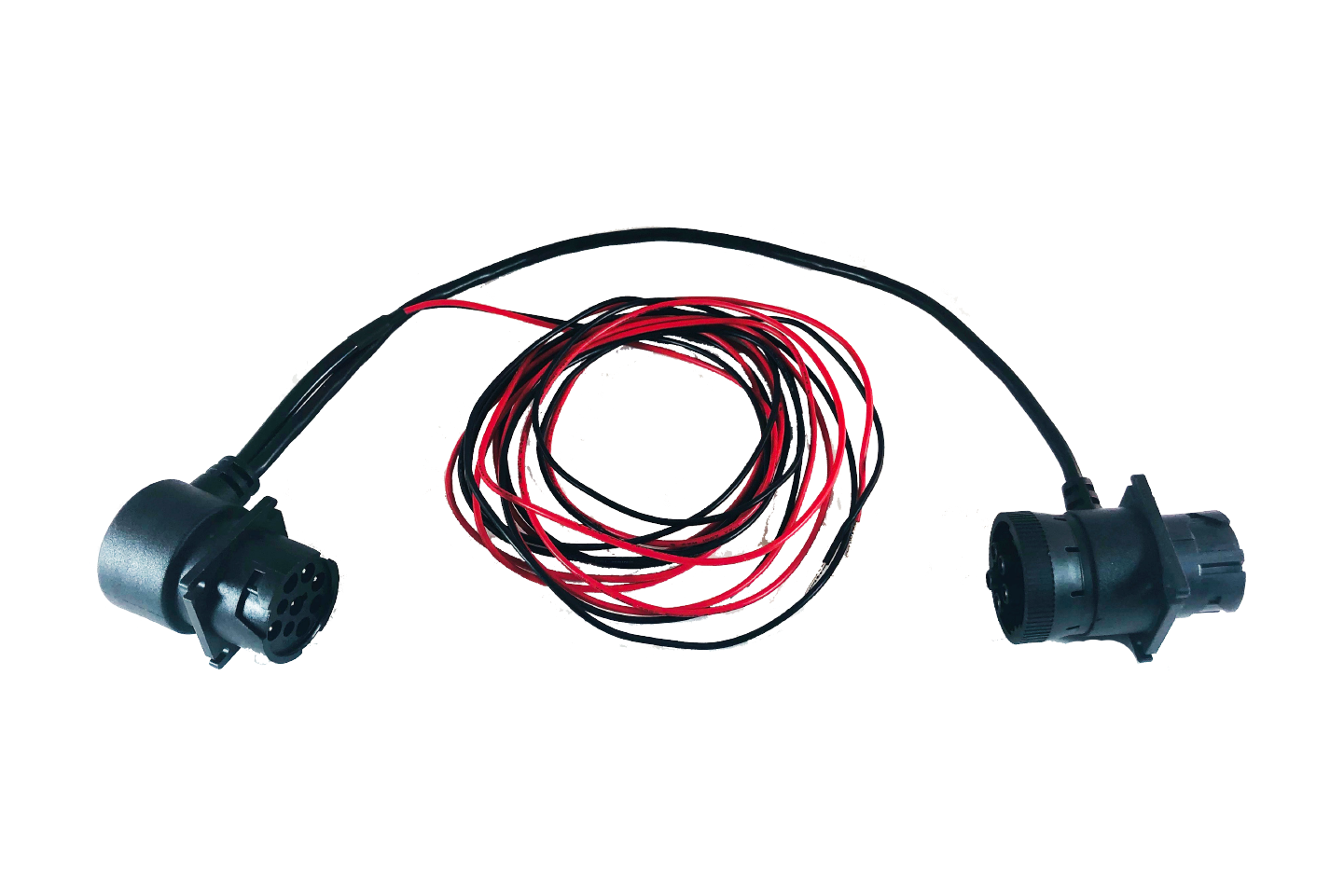

Deutsch 6-pin to 9-pin, flanged
|

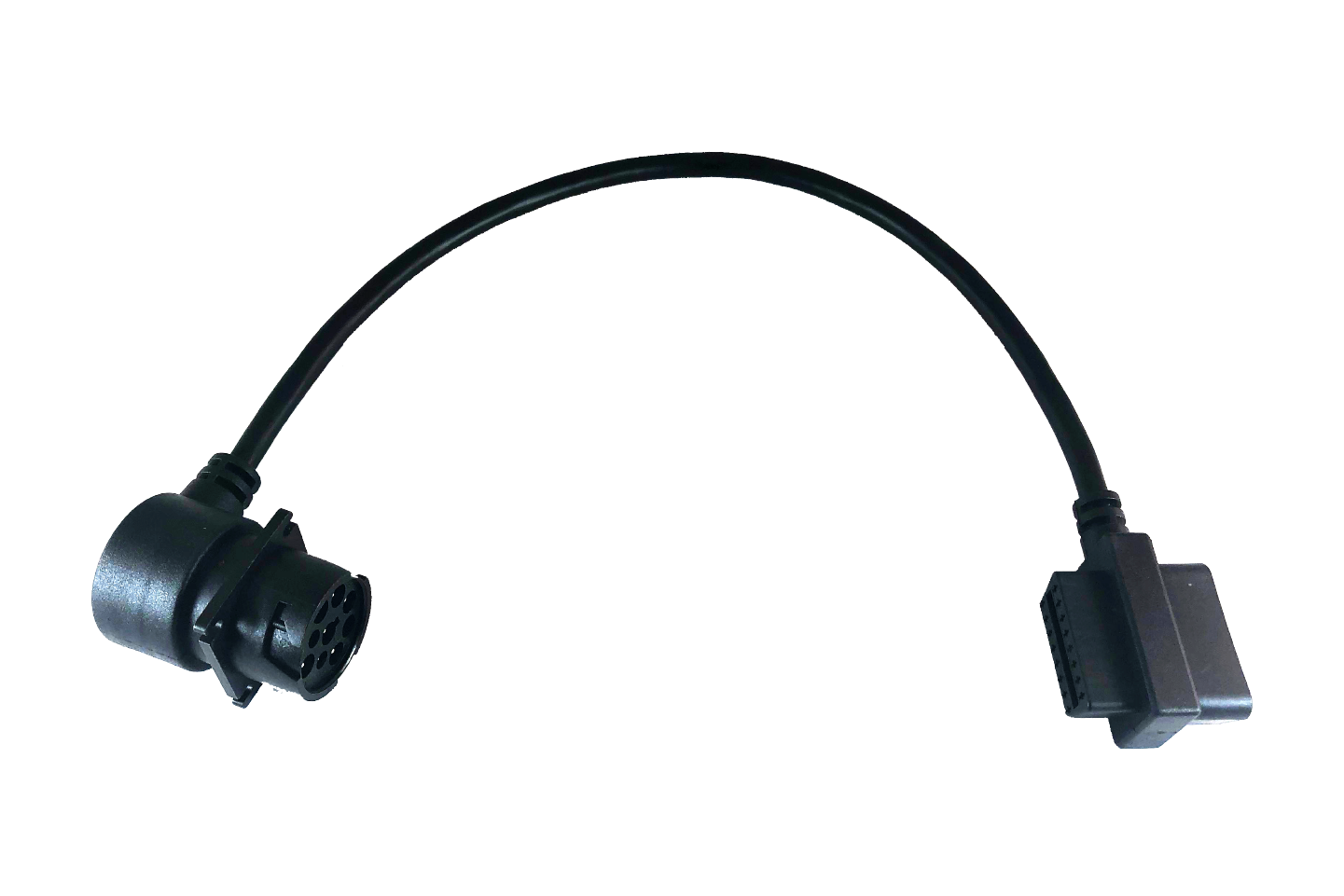

ODB II to Deutsch 9-pin
|
|
|
|
|
